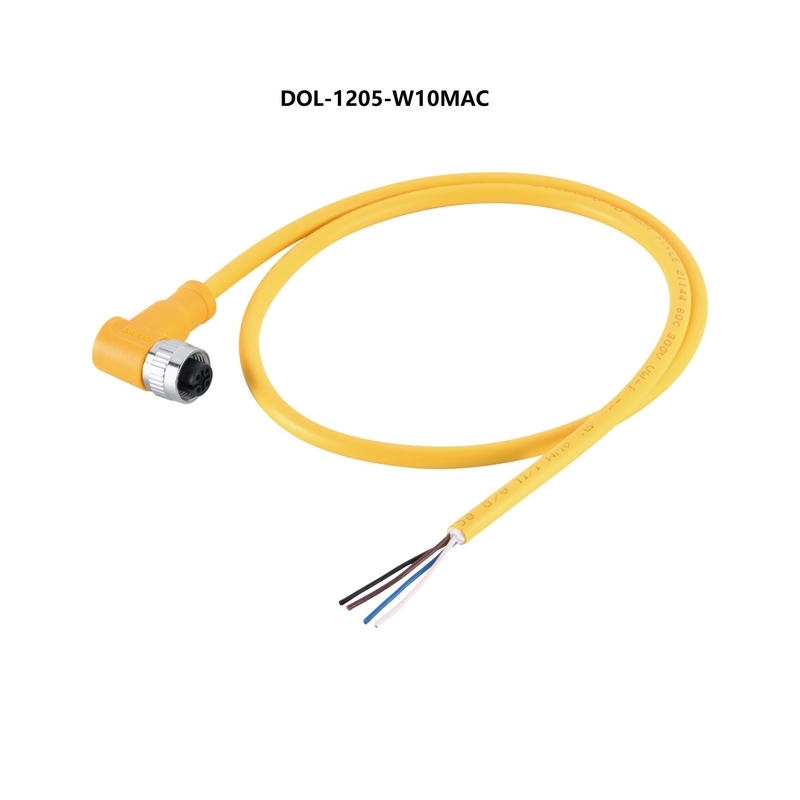

Female M12 Sensor Actuator Cable 5 Pin 10m Shielded PUR Plug Right Angled

Female M12 Sensor Actuator Cable 5 Pin 10m Shielded PUR Plug Right Angled

  • Female M12 Sensor Actuator Cable 5 Pin 10m Shielded PUR Plug Right Angled
Female M12 Sensor Actuator Cable 5 Pin 10m Shielded PUR Plug Right Angled
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: DOL-1205-W10MAC
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 05 Pin Cable Length: 10 Meters
Connector Gender: Female Connector Cable Jacket: PUR
Keyway Coding: A Coded EMC Shielding: Shielded
Cable Color: Black Reference Standard: IEC 61076-2-101
High Light:

10m Sensor Actuator Cable

,

Female M12 Sensor Actuator Cable

,

Shielded PUR M12 Connector Cable

Female M12 Sensor Actuator Cable 5 Pin 10m Unshielded PUR plug Right Angled

Connector Technical Data
Model Number
6041752
Connectors No.
5Pin
Rated Current
4A
Rated Voltage
60V
Impulse Voltage
1500V
Wire Gauge
0.34mm²(AWG 22)
Over-molding
TPU
Connection type head A
Female connector, M12, 5-pin, angled, A-coded
Screw Nut
Zinc die-cast, nickel-plated
Jacket material
PUR, halogen-free
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.




CABLEFORCE Products Features


● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant





Cableforce Core Benefits



Industrial automation is demanding, not only of sensor solutions. The connectivity also has to have the resilience and performance to meet the daily challenges of harsh industrial environments.

Cableforce provides a wide range of connectivity solutions for the many requirements of industrial automation. You benefit from more than just a comprehensive portfolio of accessories: You also save time and money, thanks to our simple order process and swift delivery of sensors with suitable connectivity.



● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
