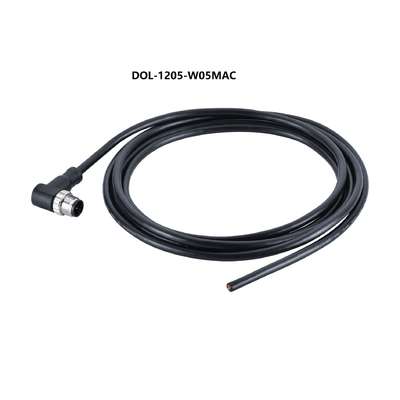

Shielded PUR Plug Right Angled Sensor Actuator Cable 5Pin 5m Female M12

Shielded PUR Plug Right Angled Sensor Actuator Cable 5Pin 5m Female M12

  • Shielded PUR Plug Right Angled Sensor Actuator Cable 5Pin 5m Female M12
Shielded PUR Plug Right Angled Sensor Actuator Cable 5Pin 5m Female M12
Product Details:
Place of Origin: Guangdong, China
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: DOL-1205-W05MAC
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 05 Pin Cable Length: 5 Meters
Connector Gender: Female Connector Cable Jacket: PUR
Keyway Coding: A Coded EMC Shielding: Shielded
Cable Color: Black Reference Standard: IEC 61076-2-101
High Light:

Shielded PUR Sensor Actuator Cable


Sensor Actuator Cable 5Pin


IP69K M12 Connector Cable

Female M12 Sensor Actuator Cable 5 Pin 5m Unshielded PUR plug Right Angled
Connector Technical Data
Model Number
Connectors No.
Rated Current
Rated Voltage
Impulse Voltage
Wire Gauge
0.34mm²(AWG 22)
Connection type head A
Female connector, M12, 5-pin, angled, A-coded
Screw Nut
Zinc die-cast, nickel-plated
Jacket material
PUR, halogen-free
Contact Plating
Protection Degree
The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.
M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.


CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant



Cableforce Core Benefits



Industrial automation is demanding, not only of sensor solutions. The connectivity also has to have the resilience and performance to meet the daily challenges of harsh industrial environments.

Cableforce provides a wide range of connectivity solutions for the many requirements of industrial automation. You benefit from more than just a comprehensive portfolio of accessories: You also save time and money, thanks to our simple order process and swift delivery of sensors with suitable connectivity.


● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning

● Using best in class materials
● Certified Cables on Request
● Quality Control & 100 Testing 100%


Shielded PUR Plug Right Angled Sensor Actuator Cable 5Pin 5m Female M12 0
