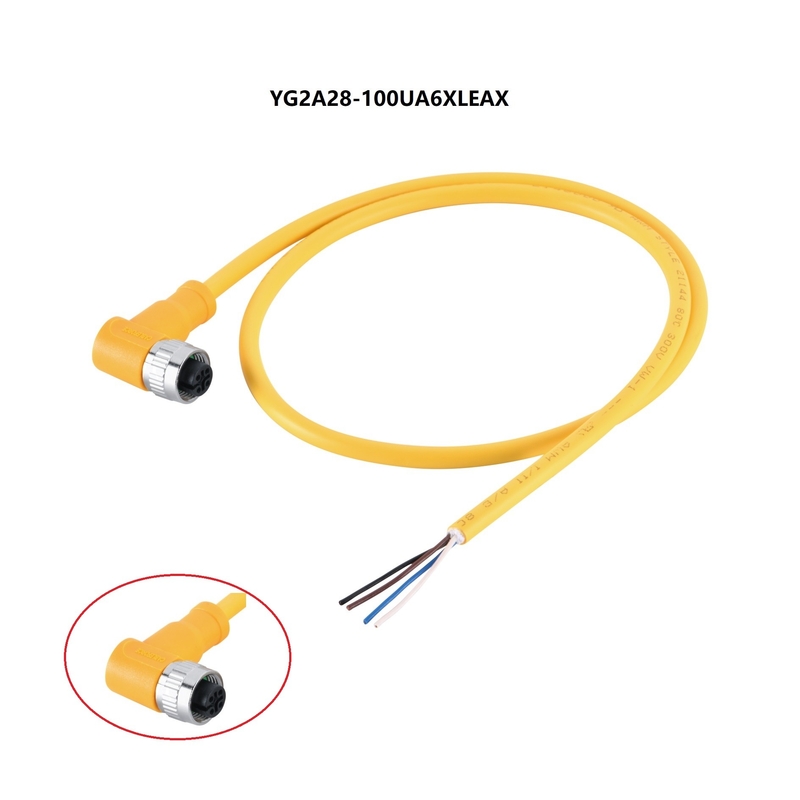

Right Angled 10m Shielded Sensor Actuator Cable M12 Connector A Coded Female 8Pin

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	YG2A28-100UA6XLEAX

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Contacts Poles:	8 Pin	Cable Length:	10 Meters
Connector Gender:	Female Connector	Cable Jacket:	PUR
Keyway Coding:	A Coded	EMC Shielding:	Un-shielded
Cable Color:	Black, Orange	Locking Nut Material:	Zinc Die-cast, Nickel-plated
High Light:	CUL Certified Sensor Actuator Cable , 8Pin Sensor Actuator Cable , A Coded M12 Connector Cable

Shielded Sensor Actuator Cable M12 Connector A Coded Female 8Pin Right Angled 10m

Connector Technical Data
Model Number	2114689
Connectors No.	8Pin
Rated Current	2A
Rated Voltage	30V
Impulse Voltage	800V
Wire Gauge	0.25mm²(AWG 24)
Over-molding	TPU
Contact Carrier	TPU+GF
Locking nut material	Zinc die-cast, nickel-plated
Contact	Brass(Male), Phosphor bronze(Female)
Contact Plating	Au(Gold)
Cable	2 m, 8-wire, PUR, halogen-free

Description

M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.

M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.

Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified

FAQ

● What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.
