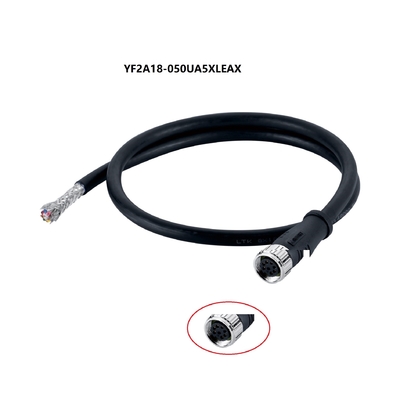

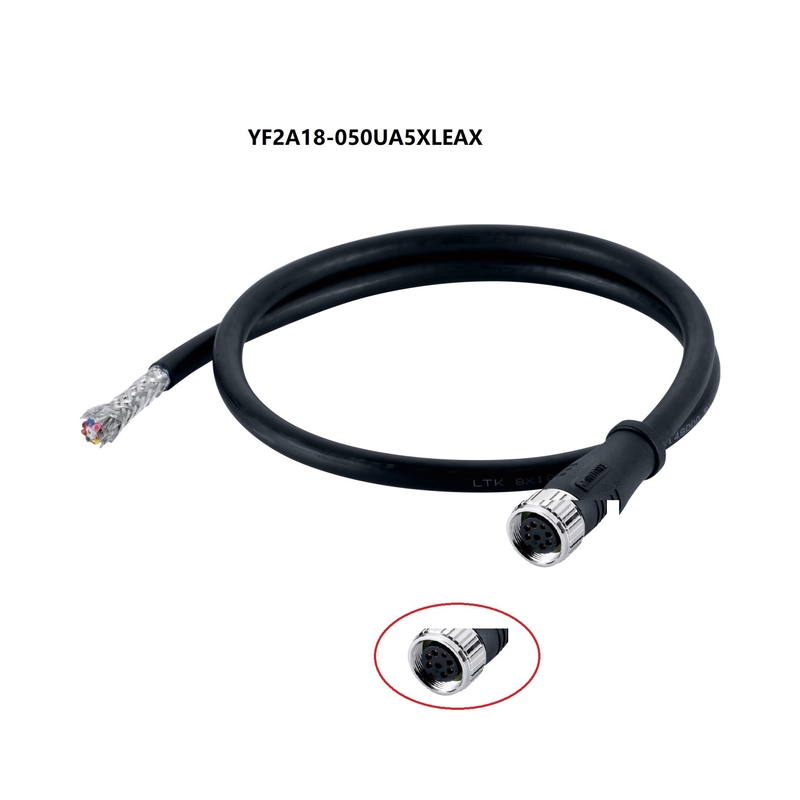

A Coded Female Connector Cable M12 8 Pin 5m Unshielded Ip68 Protection

A Coded Female Connector Cable M12 8 Pin 5m Unshielded Ip68 Protection

  • A Coded Female Connector Cable M12 8 Pin 5m Unshielded Ip68 Protection
A Coded Female Connector Cable M12 8 Pin 5m Unshielded Ip68 Protection
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: YF2A18-050UA5XLEAX
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 8 Pin Cable Length: 5 Meters
Connector Gender: Female Connector Cable Jacket: PUR
Keyway Coding: A Coded EMC Shielding: Un-shielded
Cable Color: Black, Orange, Yellow, Gray Reference Standard: IEC 61076-2-101
High Light:

PUR Female Connector Cable

,

5m Female Connector Cable

,

Unshielded Sensor Actuator Cable

Sensor Actuator Cable M12 Connector A Coded Female 8 Pin 5m Unshielded Ip67 Ip68

Connector Technical Data
Model Number 2095653
Connectors No.
8Pin
Rated Current
2A
Rated Voltage
30V
Impulse Voltage
800V
Wire Gauge
0.25mm²(AWG 24)
Over-molding
TPU
Contact Carrier
TPU+GF
Screw Nut
PA66+GF
Contact
Brass(Male), Phosphor bronze(Female)
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

M12 circular connectors are one of the most widely used sizes for circular connectors. The M12 size is available in coding variants for all industrial lifelines – for power, signals and data. IP65/67 protected and packaged in a rugged metal housing, they provide a completely reliable connection when used in demanding applications.



M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.

M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.




CABLEFORCE Products Features


● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant





Cableforce Core Benefits



● Certified Cables on Request
● Quality Control & 100 Testing 100%

● Guaranteed for life
● Safe and reliable system that is easy to install
● CE,IP67,UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance

● High impact strength even
