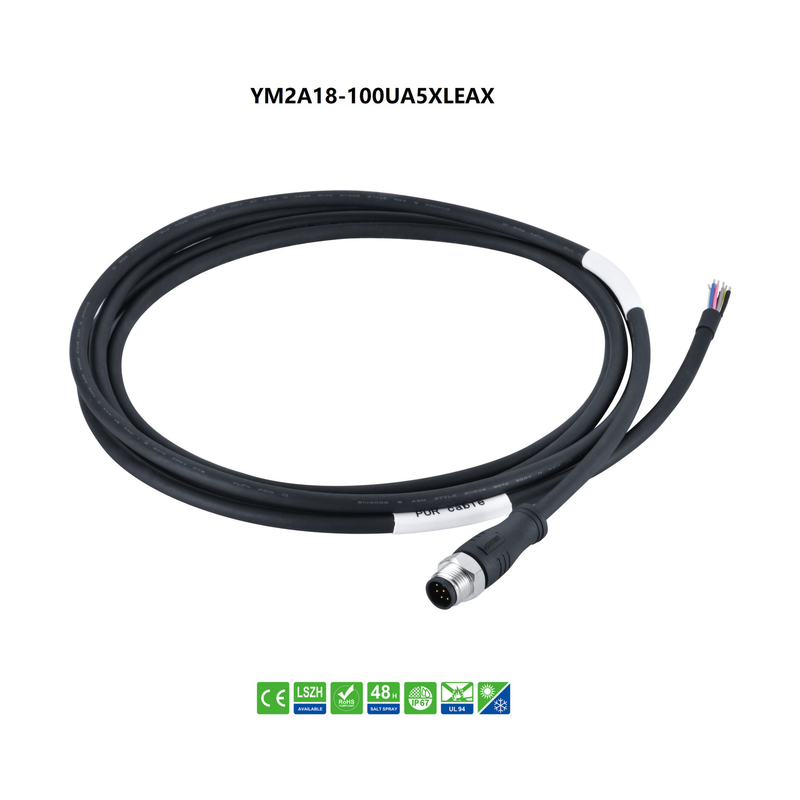

Name: PUR Sensor Actuator M12 A Coded Cable 8pin Connectors 10m Unshielded
Brand: CABLEFORCE
SKU: YM2A18-100UA5XLEAX
Price: 1.00 USD
Availability: InStock
Rating: 5 (128 reviews)

Home Products M12 Circular Connector

PUR Sensor Actuator M12 A Coded Cable 8pin Connectors 10m Unshielded

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	YM2A18-100UA5XLEAX

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Contacts Poles:	08 Pin	Cable Length:	5M
Connector Gender:	Male Connector	Cable Jacket:	PUR
Keyway Coding:	A Coded	EMC Shielding:	Un-shielded
Cable Color:	Black, Orange, Yellow, Gray	Reference Standard:	IEC 61076-2-101
High Light:	PUR M12 A Coded Cable , 10meters Sensor Actuator Cable , Unshielded M12 A Coded Cable

A Coded Male M12 Sensor Actuator Cable 8pin Connectors 10m PUR Unshielded

Connector Technical Data
Model Number	2095870
Connectors No.	8Pin
Rated Current	2A
Rated Voltage	30V
Impulse Voltage	800V
Wire Gauge	0.25mm²(AWG 24)
Over-molding	TPU
Contact Carrier	TPU+GF
Screw Nut	Brass, CNC, nickel-plated
Contact	Brass(Male), Phosphor bronze(Female)
Contact Plating	Au(Gold)
Protection Degree	IP67,IP68

Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.

M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant

Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
