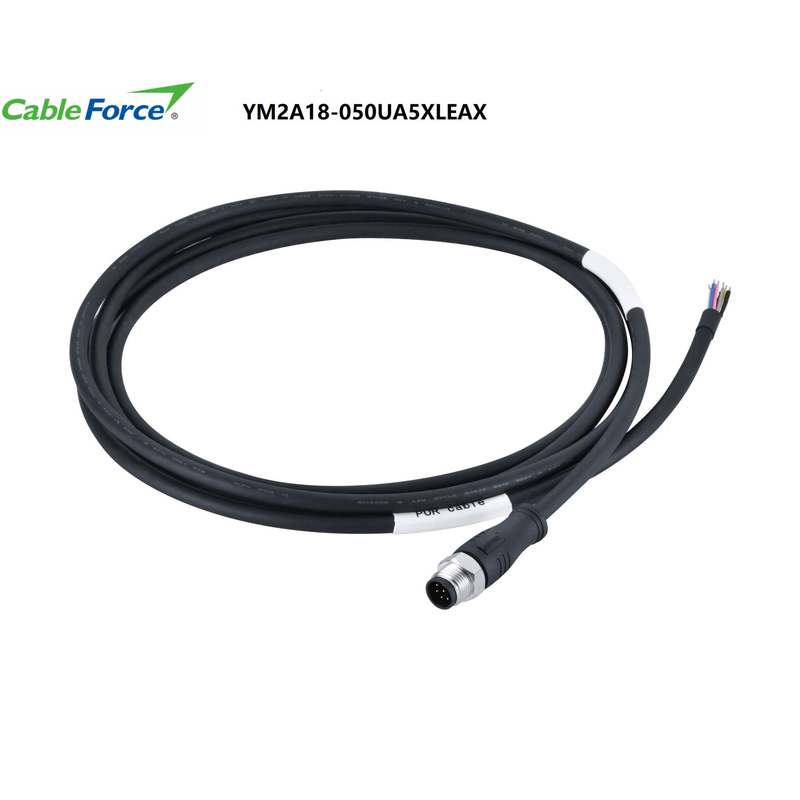

Male M12 A Coded Cable Sensor Actuator 8pin Connectors 5m PUR Unshielded

Male M12 A Coded Cable Sensor Actuator 8pin Connectors 5m PUR Unshielded

  • Male M12 A Coded Cable Sensor Actuator 8pin Connectors 5m PUR Unshielded
Male M12 A Coded Cable Sensor Actuator 8pin Connectors 5m PUR Unshielded
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: YM2A18-050UA5XLEAX
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 08 Pin Cable Length: 5M
Connector Gender: Male Connector Cable Jacket: PUR
Keyway Coding: A Coded EMC Shielding: Un-shielded
Cable Color: Black, Orange, Yellow, Gray Reference Standard: IEC 61076-2-101
High Light:

Male M12 A Coded Cable

,

Actuator M12 A Coded Cable

,

IP69K Sensor Actuator Cable

A Coded Male M12 Sensor Actuator Cable 8pin Connectors 5m PUR Unshielded

Connector Technical Data
Model Number 2095869
Connectors No.
8Pin
Rated Current
2A
Rated Voltage
30V
Impulse Voltage
800V
Wire Gauge
0.25mm²(AWG 24)
Over-molding
TPU
Contact Carrier
TPU+GF
Screw Nut
Brass, CNC, nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.



M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.





CABLEFORCE Products Features


● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant





Cableforce Core Benefits



● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
