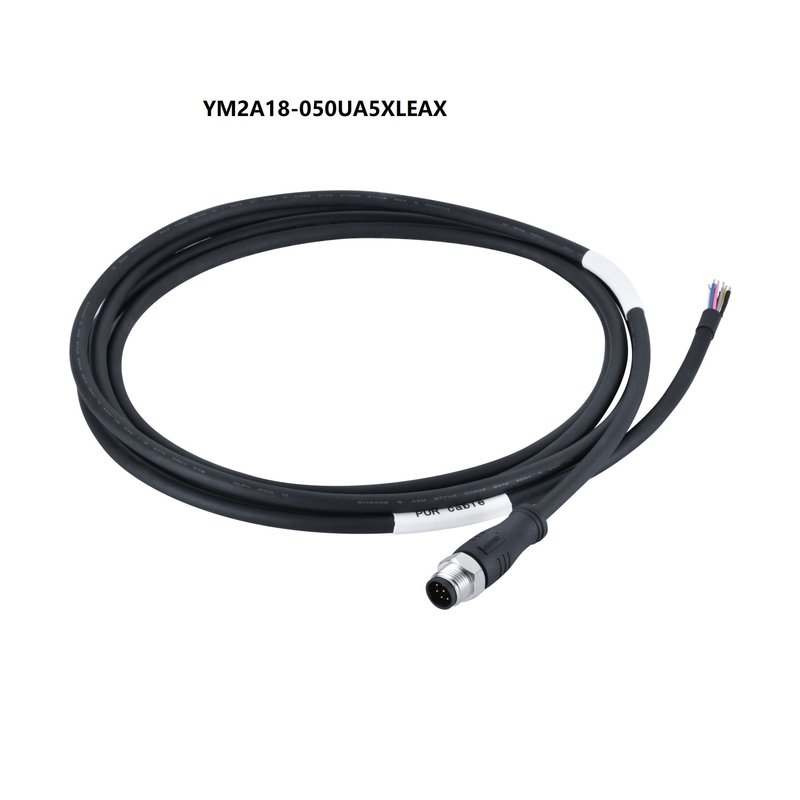

A Coded Male M12 Sensor Actuator Cable 8pin Connectors 5m PUR Unshielded

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	CABLEFORCE
Certification:	UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number:	YM2A18-050UA5XLEAX

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiated
Packaging Details:	Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time:	2~3 weeks
Payment Terms:	T/T
Supply Ability:	60000 pcs/month

Contact Now

Detailed Product Description

Contacts Poles:	08 Pin	Cable Length:	5M
Connector Gender:	Male Connector	Cable Jacket:	PUR
Keyway Coding:	A Coded	EMC Shielding:	Un-shielded
Cable Color:	Black, Orange, Yellow, Gray	Reference Standard:	IEC 61076-2-101
High Light:	Male Sensor Actuator Cable , Sensor Actuator Cable 5m , M12 Male Connector Cable

M12 Sensor Actuator Cable A Coded Male 8pin Connectors 5m PUR Cable Unshielded

Connector Technical Data
Model Number	2095869
Connectors No.	8Pin
Rated Current	2A
Rated Voltage	30V
Impulse Voltage	800V
Wire Gauge	0.25mm²(AWG 24)
Over-molding	TPU
Contact Carrier	TPU+GF
Screw Nut	PA66+GF
Contact	Brass(Male), Phosphor bronze(Female)
Contact Plating	Au(Gold)
Protection Degree	IP67,IP68

Description

M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.

M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.

Permit high flexibility for wiring in the field. For quick assembly and disassembly of often differing cable lengths, solder termination and screw termination are available, and quick-locking fast connection type is available.

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant

Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
