Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |

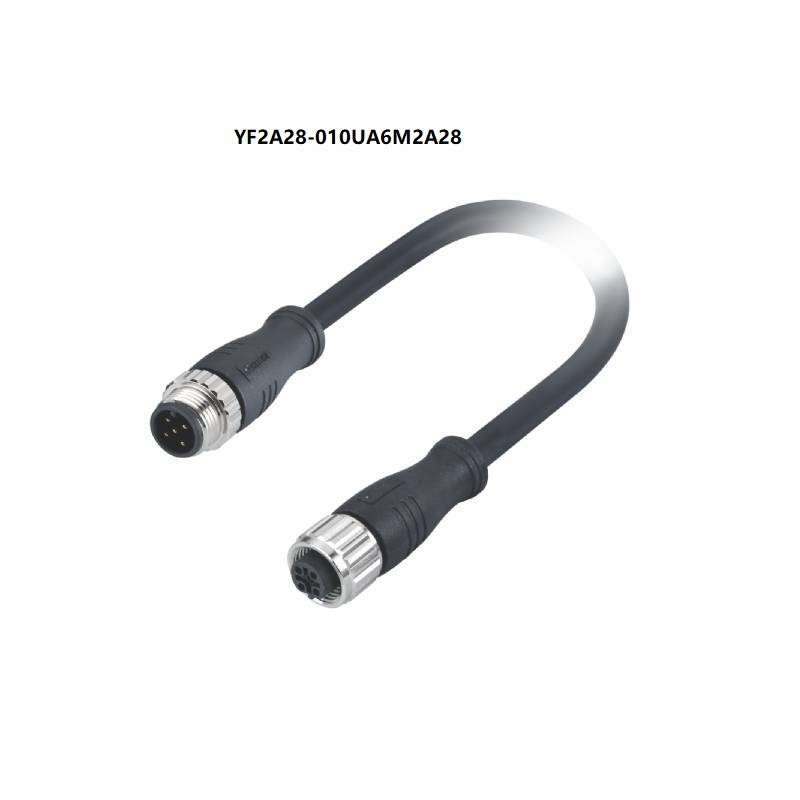

| Model Number: | YF2A28-010UA6M2A28 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Contacts No.: | 8Pin | Reference Standard: | IEC 61076-2-101 |
|---|---|---|---|
| Rated Current: | 2A | Rated Voltage: | 30V |
| Cable Specification: | 0.14mm²(AWG 26) | Rated Temperature: | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation Resistance: | ≥100MΩ | Contact Resistance: | ≤5mΩ |
| Applications: | Sensors, Actuators, Encoders, Servo Motors | Screw Nut: | Brass, CNC, Nickel-plated |
| High Light: | Male To Female M12 Sensor Cable,8Pin M12 Sensor Cable,EMI Shielded Sensor Actuator Cable |
||
| Connector Technical Data | |
| Part No | 2096108 |
| Ordering No | MC08C3LSASZ24RK10-F5 |
| Rated current | 2A |
| Rated voltage | 30V |
| Impulse voltage | 800V |
| Locking system | M12×1.0 screw |
| Tightening torque | Recommend: 0.4Nm, Max: 0.8Nm |
| Termination | Soldering |
| Cable specification | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Male: Brass, Female: Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67, IP68 |
| Pollution degree | 3 |
Description
The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.
Cableforce Core Benefits
● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
FAQ
● What is M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
