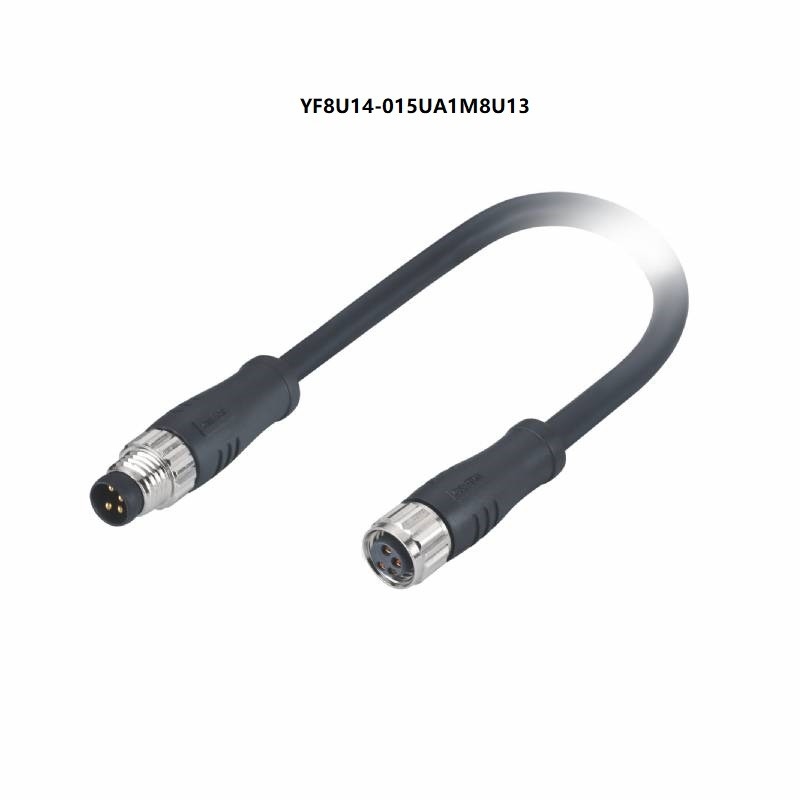

IP67 Actuator M8 Sensor Cable Male To Female Connector 4 Pin 1.5M

IP67 Actuator M8 Sensor Cable Male To Female Connector 4 Pin 1.5M

  • IP67 Actuator M8 Sensor Cable Male To Female Connector 4 Pin 1.5M
IP67 Actuator M8 Sensor Cable Male To Female Connector 4 Pin 1.5M
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: YF8U14-015UA1M8U13
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Type: Male To Female Connector Contacts No.: 4Pin
Cable Material: PUR Length: 1.5M
Insulation Resistance: ≥100MΩ Contact Resistance: ≤5mΩ
Screw Nut: Brass, CNC, Nickel-plated Protection Degree: IP67, IP68
High Light:

IP67 M8 Sensor Cable

,

4 Pin M8 Sensor Cable

,

1.5M Sensor Actuator Cable

IP67 M8 Sensor Actuator Cable Male To Female Connector AWG 24 M8 4 Pin

Connector Technical Data
Part No 2114278
Referance standard IEC 61076-2-104
Rated current 3A
Rated voltage 60V
Impulse voltage 1500V
Wire gauge 0.25²(AWG 24)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass
Contacts plating Au(Gold)
O-ring FKM, Silicon O-ring
Protection degree IP67, IP68


Description

M8 connectors can be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.




CABLEFORCE Products Features

● Optional contacts number: 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
● Authentication: RoHS, CE
● Rated temperature: Flexible: -25 ~ +80℃, Static: -40 ~ +80℃
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements




Cableforce Core Benefits



● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
