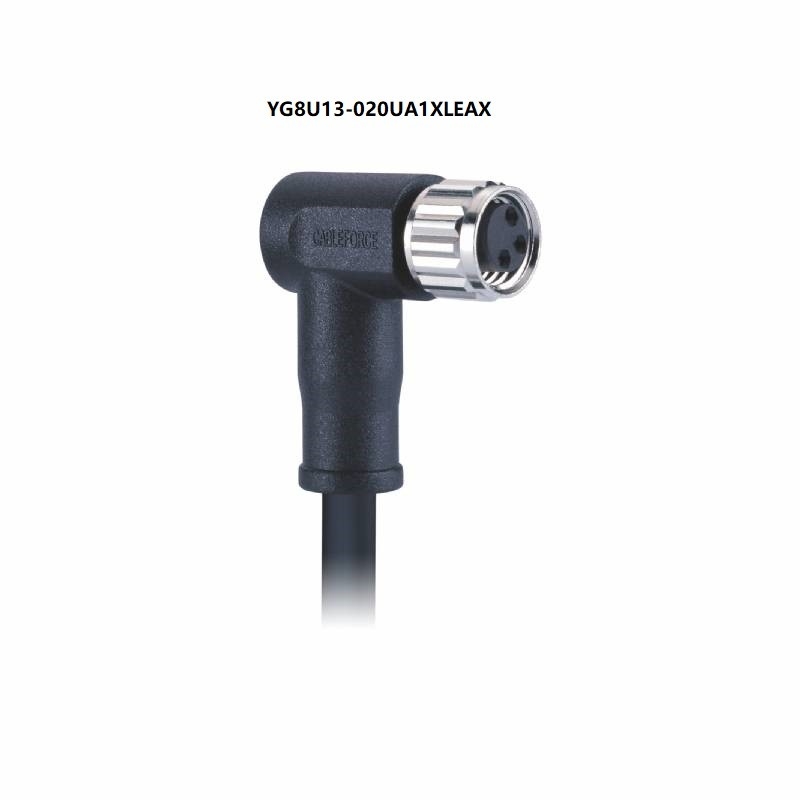

Circular M8 Female Sensor Actuator Cable Right Angled Connector A Code 3Pin PUR

Circular M8 Female Sensor Actuator Cable Right Angled Connector A Code 3Pin PUR

  • Circular M8 Female Sensor Actuator Cable Right Angled Connector A Code 3Pin PUR
Circular M8 Female Sensor Actuator Cable Right Angled Connector A Code 3Pin PUR
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: YG8U13-020UA1XLEAX
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts No.: 3Pin Termination: Soldering
Wire Gauge: 0.25mm²(AWG 24) Insulation Resistance: ≥100MΩ
Contact Resistance: ≤5mΩ Screw Nut: Brass, CNC, Nickel-plated
Contact: Brass O-ring: FKM, Silicon O-ring
High Light:

M8 PUR Sensor Actuator Cable

,

M8 Female Sensor Actuator Cable

,

Right Angled m8 sensor cable

Circular M8 Female Sensor Actuator Cable Right Angled Connector A Code 3Pin PUR

Connector Technical Data
Part No
2094794
Connectors No.
3Pin
Referance standard IEC 61076-2-104
Rated current
3A
Rated voltage
60V
Locking system M8×1.0 screw
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Screw nut
Brass, CNC, Nickel-plated
Contact Brass
Contact
Brass(Male), Phosphor bronze(Female)
O-ring FKM, Silicon O-ring
Protection degree
IP67, IP68


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. These connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice.





Cableforce Core Benefits



● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH





FAQ



What is M8 connector?

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.



● What is the Applications of the M8 connector?

Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.



What is the difference between M8 and M12?

Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
