PUR M8 Circular Female A Code 3 Pin Connector Soldering Termination

PUR M8 Circular Female A Code 3 Pin Connector Soldering Termination

  • PUR M8 Circular Female A Code 3 Pin Connector Soldering Termination
PUR M8 Circular Female A Code 3 Pin Connector Soldering Termination
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K

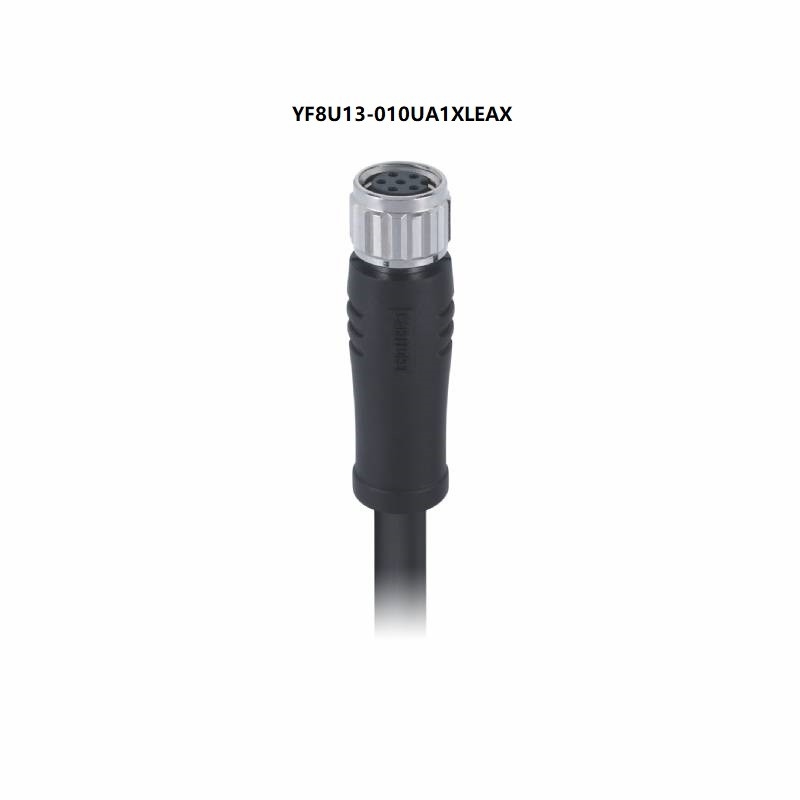

Model Number: YF8U13-010UA1XLEAX
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts No.: 3Pin Termination: Soldering
Wire Gauge: 0.25mm²(AWG 24) Insulation Resistance: ≥100MΩ
Contact Resistance: ≤5mΩ Screw Nut: Brass, CNC, Nickel-plated
Contact: Brass O-ring: FKM, Silicon O-ring
High Light:

PVC m8 ethernet cable

,

Female Connector m8 ethernet cable

,

Soldering Termination m8 3 pin cable

PUR M8 Circular Female A Code 3 Pin Connector Soldering Termination

Connector Technical Data
Part No
2094779
Connectors No.
3Pin
Referance standard IEC 61076-2-104
Rated current
3A
Rated voltage
60V
Locking system M8×1.0 screw
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Screw nut
Brass, CNC, Nickel-plated
Contact Brass
Contact
Brass(Male), Phosphor bronze(Female)
O-ring FKM, Silicon O-ring
Protection degree
IP67, IP68


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. These connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice.





CABLEFORCE Products Features


● 3Pin, 4Pin, 5Pin, 6Pin, 8Pin aie available
● Rated temperature: Flexible: -25 ~ +80℃, Static: -40 ~ +80℃
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements





FAQ



What is M8 connector?

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.



● What is the Applications of the M8 connector?

Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.



What is the difference between M8 and M12?

Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
