D Coded Profibus M12 Male To Male Cable For Profinet Ethernet

D Coded Profibus M12 Male To Male Cable For Profinet Ethernet

  • D Coded Profibus M12 Male To Male Cable For Profinet Ethernet
  • D Coded Profibus M12 Male To Male Cable For Profinet Ethernet
D Coded Profibus M12 Male To Male Cable For Profinet Ethernet
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: SSL-1204-G02ME90
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Coding: D Coding Gender: Male To Female
Wire Gauge: 0.34mm²(AWG 22) CAT 5E SFTP Type: M12 D Code Cable Connector
Application: Profinet Ethernet Characteristic Impedance: 100Ω ±15
Over-molding: TPU Reference Standard: IEC 61076-2-101
High Light:

D Coded M12 Male To Male Cable

,

Profibus M12 Male To Male Cable

,

CAT 5E M12 Ethernet Cable

D Coded Profibus Sensor Actuator Cable M12 Male To Male Cable Profinet Ethernet

Connector Technical Data
Part No 6063693
Contact No 4 pin
Coding
D coded
Contact Resistance
≤10mΩ
Characteristic Impedance
150Ω ±15
Wire Gauge
0.34mm²(AWG 22)
Type
M12 D Code Cable Connector
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Pollution Degree
3
Protection Degree
IP67,IP68


Description

Industrial EtherNet Cable Plug by M12 4Pin D-Code straight Male to male EMC shielded connectors by molded with 22AWG 2 Pair twisted EtherNet Cable, Green PVC/PUR cable jacket.D-coded connectors are typically used in network cables for Ethernet and ProfiNet systems. D-coded connectors transfer data up to 100 Mb. These connectors typically provide three to five pins.





Cableforce Core Benefits



● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH





FAQ



What is PROFIBUS and how it works?

Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.



What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.



What is difference between PROFIBUS and Ethernet?

PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.

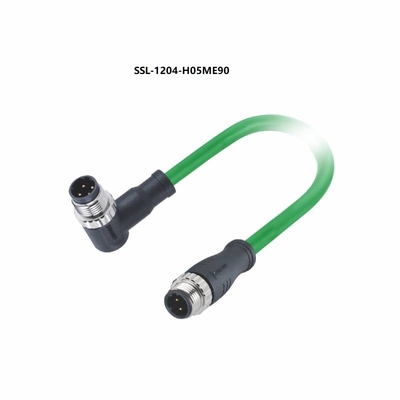

D Coded Profibus M12 Male To Male Cable For Profinet Ethernet 0

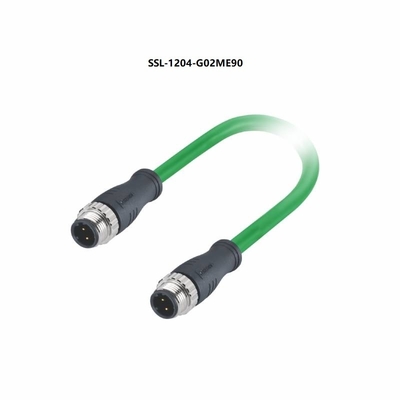

D Coded Profibus M12 Male To Male Cable For Profinet Ethernet 1
