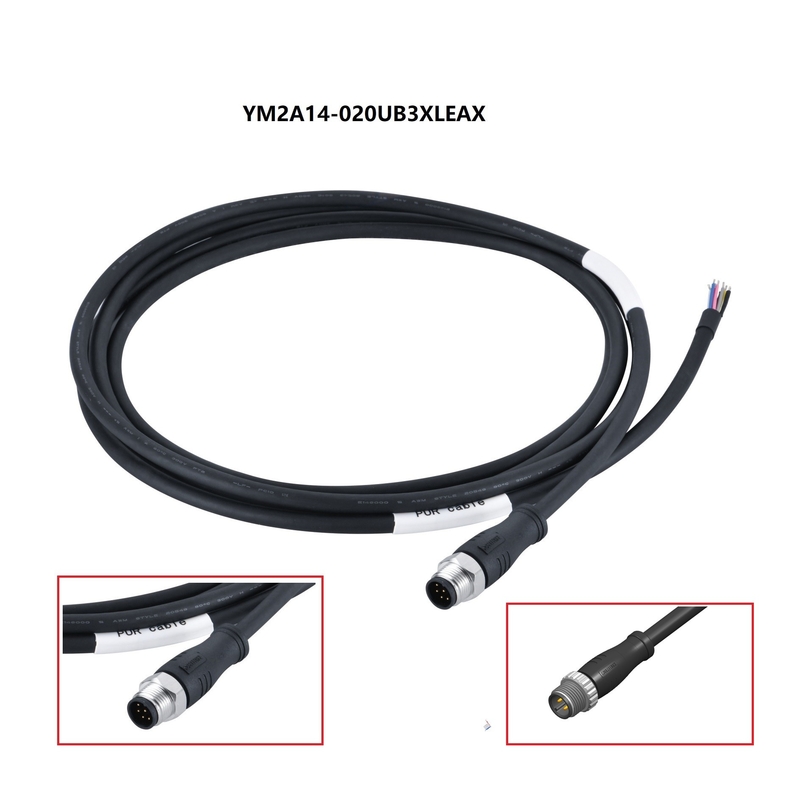

M12 Sensor Actuator Cable A Coding Male Straight Connectors 4pin 2m PUR Cable

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● Cable material: PUR or PVC

FAQ

● What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.

● What is a sensor cable?

Sensor cable is a cable construction designed for optimal performance of signal/data transmission from a sensor, transducer, or transmitter to a control unit. Pressure, liquid, temperature, and flow are just a few of the measurements that can be taken.
