Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |

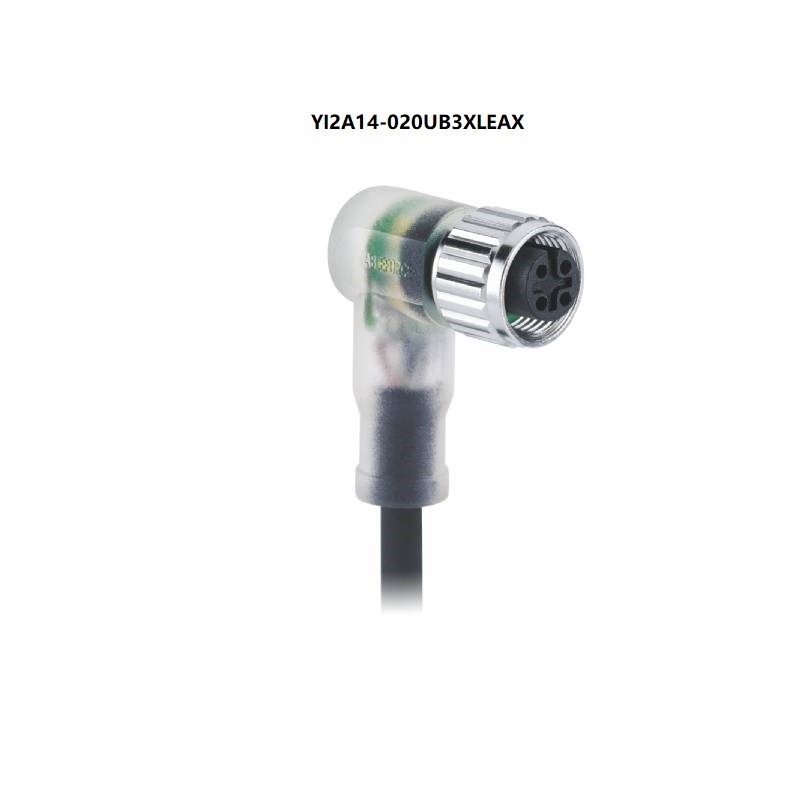

| Model Number: | YI2A14-020UB3XLEAX |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Contacts Poles: | 4 Poles | Cable Length: | 2M |
|---|---|---|---|
| Connector Gender: | Female Connector | Cable Jacket: | PUR |
| Keyway Coding: | A-Coding | EMC Shielding: | Un-shielded |
| Cable Color: | Black, Orange, Yellow, Gray | Reference Standard: | IEC 61076-2-101 |
| High Light: | Unshielded M12 A Coded Cable 2m,LED PNP M12 A Coded Cable,PUR 2m M12 4 Pin Cable |
||
|
Connector Technical Data
|
|||||||||
|
Model Number
|
2095836
|
||||||||
|
Connectors No.
|
4Pin
|
||||||||
|
Rated Current
|
4A
|
||||||||
|
Rated Voltage
|
12V
|
||||||||
|
Rated temperature
|
Flexible -25℃...+80℃
|
||||||||
|
Wire Gauge
|
0.34mm²(AWG 22)
|
||||||||
|
Over-molding
|
TPU
|
||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
|
Screw Nut
|
Brass,CNC,Nickel-plated
|
||||||||
|
Contact
|
Brass(Male), Phosphor bronze(Female)
|
||||||||
|
Contact Plating
|
Au(Gold)
|
||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
Cableforce Core Benefits
● FREE Technical Consultation
● FREE Technical Drawings
● Samples & Prototyping
● Custom Labels & Packaging
● Using Best in Class Materials
● Competitive Pricing
● Timeline Planning
● Certified Cables on Request
● Quality Control & 100% Testing 100%
FAQ
● What is a M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
● What does the coding mean on M12 connectors?
This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.
● What is a sensor cable?
Sensor cable is a cable construction designed for optimal performance of signal/data transmission from a sensor, transducer, or transmitter to a control unit. Pressure, liquid, temperature, and flow are just a few of the measurements that can be taken.
