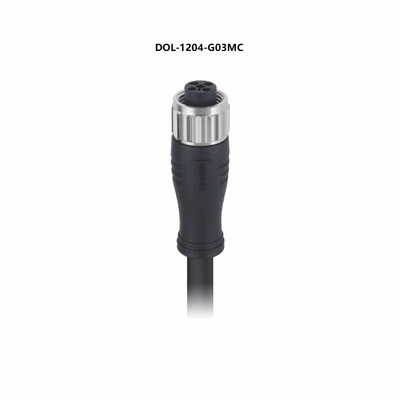

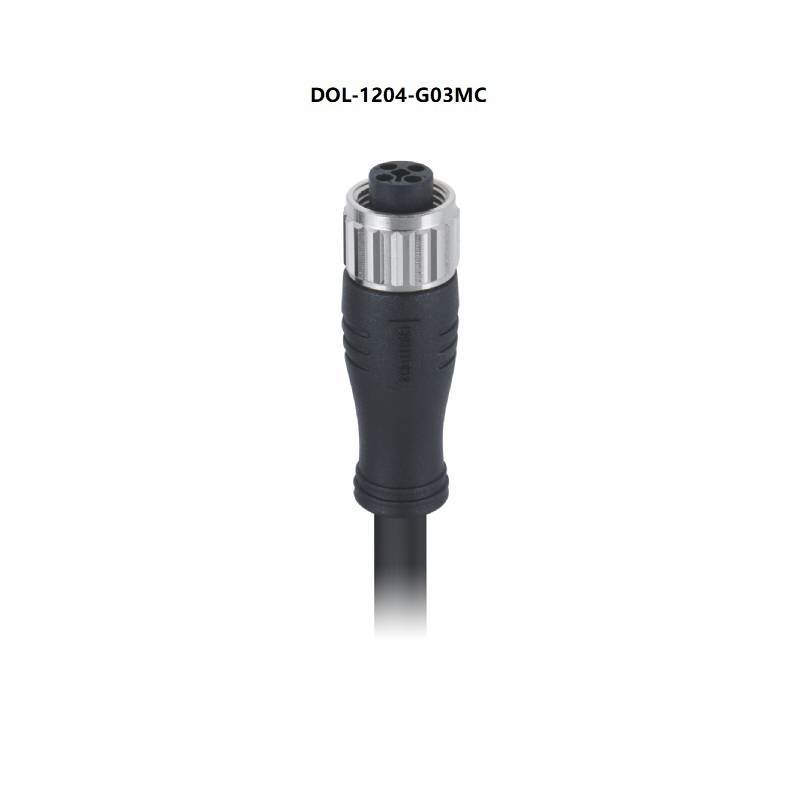

Sensor Actuator M12 Female Cable 3m T Code 4Poles Female Connector Unshielded Free End

Sensor Actuator M12 Female Cable 3m T Code 4Poles Female Connector Unshielded Free End

  • Sensor Actuator M12 Female Cable 3m T Code 4Poles Female Connector Unshielded Free End
Sensor Actuator M12 Female Cable 3m T Code 4Poles Female Connector Unshielded Free End
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: DOL-1204-G03MC
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 4 Pin Cable Length: 3M
Connector Gender: Female Cable Jacket: PVC, PUR
Keyway Coding: T Code Reference Standard: IEC 61076 2 111
Cable Color: Black Termination: Crimping
High Light:

Sensor Actuator M12 Female Cable

,

Free End M12 Female Cable

,

Unshielded T Code M12 Sensor Cable

3M Sensor Actuator Cable M12 T Code 4Poles Female Connector Unshielded Free End

Connector Technical Data
Part Number
6059907
Connectors No.
4 Pin
Locking System
M12×1.0 Screw
Rated Current 12 A
Rated Voltage 63V AC
Impulse Voltage 1500V
Wire Gauge
AWG 16 1.5mm²
Over molding
TPU
Screw nut Brass, CNC, nickel plated
Contact
Male: Brass; Female: Phosphor bronze
Contact Carrier
PA66 + GF
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

M12 T-Code connectors are designed for DC power supplies with 12A/ 63V DC, which works well for low-voltage applications, such as power suppliers for fieldbus Ethernet components.The termination structure includes tail cover, inner pad, cable and shielding layer. The tail cover is generally set on the outer surface of the inner pad, and the tail cover and the connector end are fixedly connected, so that the terminated cable diameter is not easy to suffer from M12 The diameter of the circular metal waterproof industrial Ethernet connector can be terminated according to the cable of any diameter size, and the terminated cable has a relatively high compressive strength, small size and compact structure, simple structure, and strong applicability.




Sources of EMI


In general, EMI sources can be divided into two major categories: ambient EMI and power quality problems. Railroad and mass transit systems, medical equipment, and military applications also face their own specific challenges. Increasingly, intentional electromagnetic interference (IEMI) also represents a threat to non-military assets such as the power grid and other types of critical infrastructure.





FAQ



 What is EMI Shielding?
EMI Shielding in electronic devices and equipment is the use of manufacturing techniques and materials to protect signals from being disrupted by external electromagnetic signals as well as preventing generated signals from interfering with surrounding components.
