Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | YF2B22-020PB1XLEAX |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |
| Contacts Poles: | 05 Pin | Cable Length: | 2M |
|---|---|---|---|
| Connector Gender: | Female Connector | Cable Jacket: | PUR |
| Keyway Coding: | B-Coding | Rated Voltage: | 60V |
| Cable Color: | Purple | Screw Nut: | Brass, CNC, Nickel-plated |
| High Light: | Profibus M12 Sensor Cable,60V M12 Sensor Cable,Purple M12 B Coded Connector |
||
|
Connector Technical Data
|
|||||||||
|

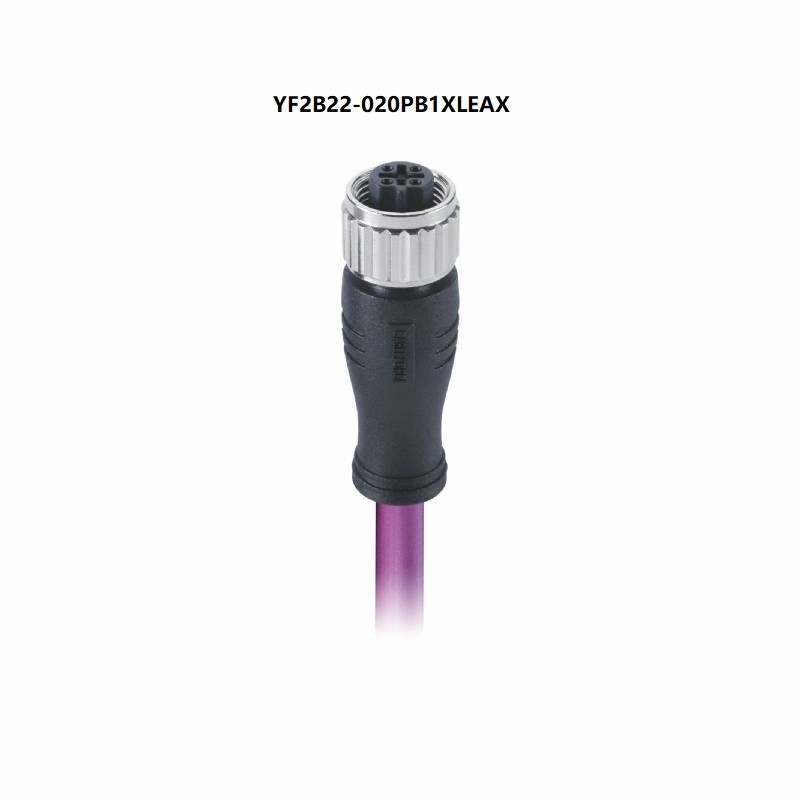

Model Number
|
YF2B22-020PB1XLEAX
|
||||||||
|
Connectors No.
|
5Pin
|
||||||||
|
Locking System
|
M12×1.0 Screw
|
||||||||
|
Termination
|
Soldering
|
||||||||
|
Color
|
Purple
|
||||||||
|
Wire Gauge
|
0.34mm²(AWG 22)
|
||||||||
|
Over-molding
|
TPU
|
||||||||
|
Insulation Resistance
|
≥100MΩ
|
||||||||
|
Contact Resistance
|
≤5mΩ
|
||||||||
|
Pollution degree
|
3 | ||||||||
|
Contact Plating
|
Au(Gold)
|
||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
● Connector injection molding, assembly, measuring and testing
● Soldering Crimping Stamping Mounting Assembling
● Plastic injection tooling making
● Screw & Metal parts CNC Plating Coating
● Die-casting and mold making
● FKM Silicone injection
● Sheet metal forming
FAQ
● What is B-coded?
B-coded connectors are mostly used in network cables for fieldbus connections. These connectors are primarily used with AC sensors and actuators. They also have a dual keyway for added security, ensuring that this connector will not be accidentally used in the place of another cable.
● What is PROFIBUS connector?
The PROFIBUS DB9 connector is used in most IP 20 environments and is the best solution for high transmission speeds. The connector is perfect for establishing a connection between cables and to create the ideal branch. The majority of connectors have coils to suppress noise and reflections.
Contact Person: Marco Yang
Tel: 13509009528
