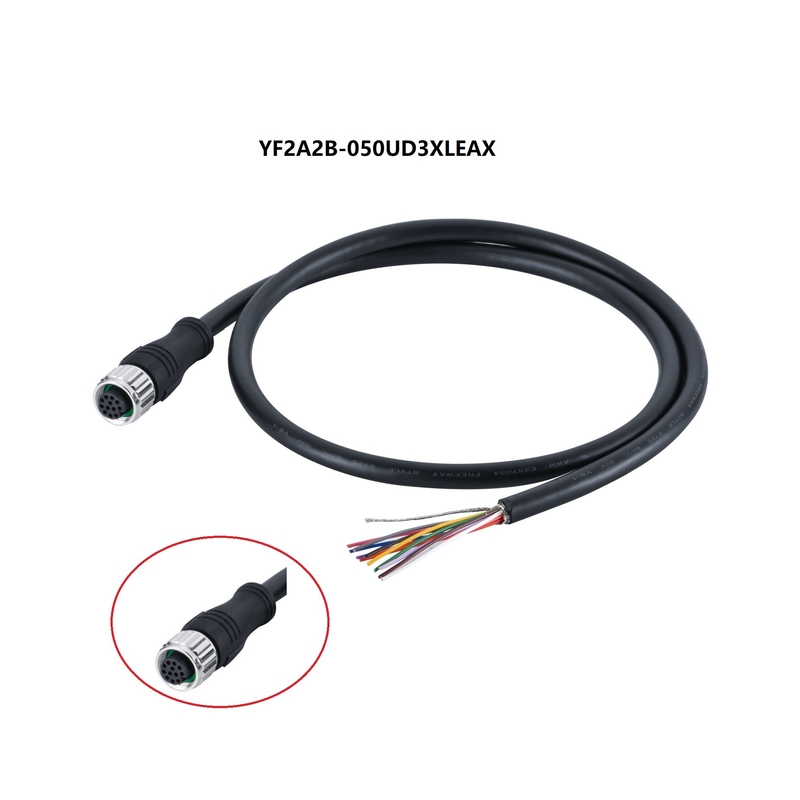

5m 12Pin Sensor Actuator Cable PUR Jacket M12 A Coded Female Connector Shielded

5m 12Pin Sensor Actuator Cable PUR Jacket M12 A Coded Female Connector Shielded

  • 5m 12Pin Sensor Actuator Cable PUR Jacket M12 A Coded Female Connector Shielded
5m 12Pin Sensor Actuator Cable PUR Jacket M12 A Coded Female Connector Shielded
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: YF2A2B-050UD3XLEAX
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 12 Pin Cable Length: 5M
Connector Gender: Female Connector Cable Jacket: PUR
Keyway Coding: A-Coding EMC Shielding: Shielded
Cable Color: Black, Orange, Yellow, Gray Reference Standard: IEC 61076-2-101
High Light:

M12 A Coded Sensor Actuator Cable

,

PUR Jacket Sensor Actuator Cable

,

2m M12 A Coded Female Connector

5m 12Pin Sensor Actuator Cable PUR Jacket M12 A Coded Female Connector Shielded

Connector Technical Data
Model Number
YF2A2B-050UD3XLEAX
Connectors No.
12Pin
Rated Current
1.5A
Rated Voltage
30V
Impulse Voltage
500V
Wire Gauge
0.14mm²(AWG 26)
Over-molding
TPU
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.





CABLEFORCE Products Features


● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● Cable material: PUR or PVC



FAQ



What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.



What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.



What is a sensor cable?

Sensor cable is a cable construction designed for optimal performance of signal/data transmission from a sensor, transducer, or transmitter to a control unit. Pressure, liquid, temperature, and flow are just a few of the measurements that can be taken.





5m 12Pin Sensor Actuator Cable PUR Jacket M12 A Coded Female Connector Shielded 0
