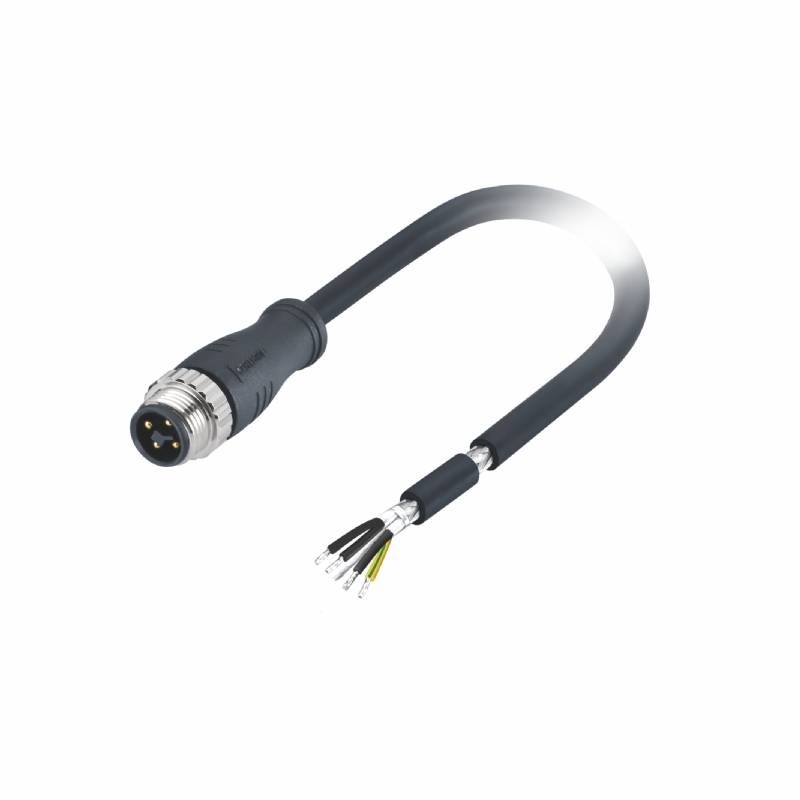

M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector

M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector

  • M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector
M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C1LCTB16CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts No.: 4Pin Reference Standard: IEC 61076 2 111
Rated Current: 12A Rated Voltage: 63V DC
Cable Specification: 1.5mm²(AWG 16) Rated Temperature: Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation Resistance: ≥100MΩ Contact Resistance: ≤5mΩ
Contact Carrier: PA66 + GF Screw Nut: Brass, CNC, Nickel-plated

M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector

Connector Technical Data
Contacts No. 4Pin
Reference standard IEC 61076 2 111
Rated current 12A
Rated voltage 63V DC
Impulse voltage 1500V
Locking system M12×1.0 screw
Tightening torque Recommend: 0.4Nm, Max: 0.8Nm
Termination Crimping
Cable specification 1.5mm²(AWG 16)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Male: Brass, Female: Phosphor bronze



Description


T coded connectors consist of a 16A current rating, a 60VDC voltage rating, and a durable screw connection. The screw connection offers a high degree of protection, and the flexible design smoothes on-site assembly. T-coded connectors include Board and Panel Mount Connectors, Cable Connectors and Cordsets.

M and S Coded AC Connectors have an 8 to 16A current range, 630VAC voltage rating, and flexibility for easy on-site assembly. M-coded connectors feature 5+PE positions and protection against incorrect connection using special S-coding. S-coded connectors are safe to use in the field due to a high degree of protection and include Board and Panel Mount Connectors and Cable Connectors.



CABLEFORCE Product Features

● 4 poles are available
Cable length optional: 1, 2, 3, 5 M
Cable material optional: PVC, PUR

Un-Shielded and EMI-Shielded is available
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements




FAQ

● What is M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your re
fer.


What kind of cable does a power supply use?

Most PSU's provide two cables ; one with 4 pins and one with 8 pins. Obviously you only need to use one of these cables. It is also possible that your 8 pin cable can be split into two segments to provide backwards compatibility with cheaper motherboards.



M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector 0M12 Circular Male Connector 4Pin Molded With PVC Power Cable T Connector 1
