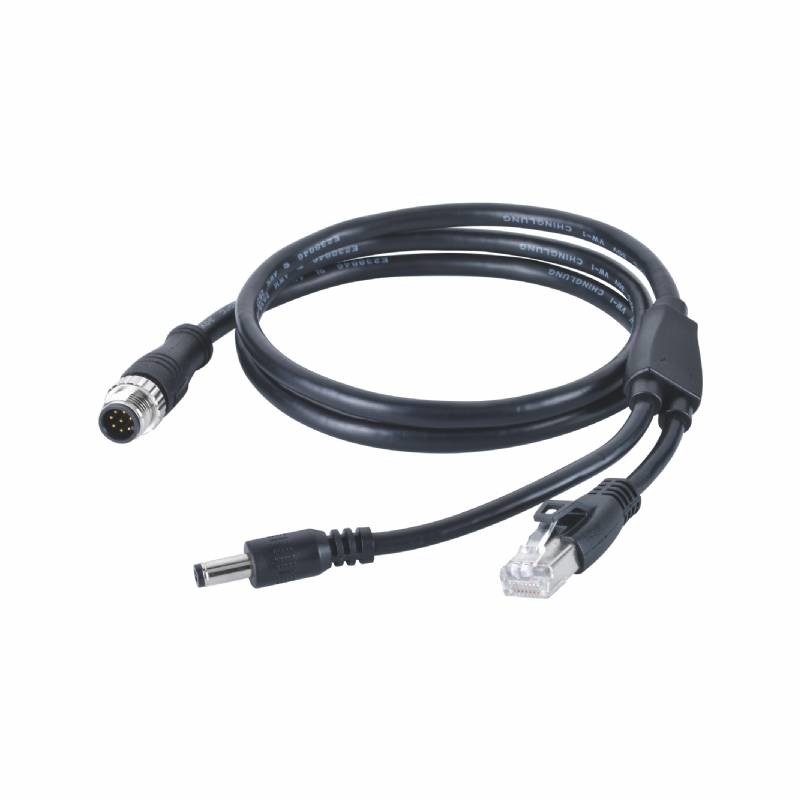

8 Pin A Coded M12 Y Splitter Cable M12 To RJ45 8P8C 5.5x2.1 DC

8 Pin A Coded M12 Y Splitter Cable M12 To RJ45 8P8C 5.5x2.1 DC

  • 8 Pin A Coded M12 Y Splitter Cable M12 To RJ45 8P8C 5.5x2.1 DC
8 Pin A Coded M12 Y Splitter Cable M12 To RJ45 8P8C 5.5x2.1 DC
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC08C1LCASB-RJ45-DC-26CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Coding: A Coding Gender: Male To RJ45 Male Plug And DC Male Plug
Cable Specification: AWG26 Termination: Crimping
Type: Splitter Cable Contact Carrier: TPU + GF
Over-molding: TPU Reference Standard: IEC 61076-2-101
High Light:

8 Pin M12 Y Splitter Cable

,

A Coded M12 Y Splitter Cable

M12 Circular Connector Y Splitter Cable A Code Male Cat 5e to 5.5x2.1 DC RJ45 8P8C

Connector Technical Data
Model Number MC08C1LCASB-RJ45-DC-26CK10
Contact No 8 pin
Coding
A coded
Rated Current 0.5A
Rated voltage
500V
Termination
Crimping,  Push Pull,  Snap in
Type
Y splitter cable
Contact Carrier
TPU+GF
Screw Nut
Brass CNC Nickel plated
Contact
Male: Brass, Female: Phosphor bronze
Pollution degree 3
Protection Degree
IP67,IP68


Description


M12 splitters includes both M12 T connectors and M12 Y connectors in 4 and 5 positions. The M12 Y splitters are available in 4 and 5 positions with a shunting circuit or for parallel operation. The input side of the M12 Y splitter connector is a male M12 connector and the output is 2 female M12 connectors. The 4 and 5 position M12 T connector splitters are available in an unshielded version and a fully shielded model. The contacts on all of the M12 splitter connectors are gold plated for reliability and the housings are nickel plated for industrial environments. Both the M12 T connectors and the Y splitters are A coded.





CABLEFORCE Products Features


● Degree of protection IP67 IP68

● 8P poles are available

● TPU over molded and PA+GF or metal shell
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.

● Reference Standard:IEC 61076 2 109



FAQ



What are Y-cables used for?

What is a Y Cable? The function of a Y cable is to duplicate a single audio signal into 2 identical audio signals. The two signals can be connected to two new destination devices. A Y cable can also be used to change the connector type to avoid using a Y cable plus connector adapters in the same chain.



What is a splitter in cable?

A splitter is a device used to split a cable signal between two or more devices, providing two coaxial cables to connect those devices. A splitter weakens the signal level. This can cause intermittent loss of service or, in rare cases, complete service failure.



● Is there a difference in cable splitters?

Is there a difference in the quality of coax splitters? Not all coax cable splitters are created equally. Low quality coax splitters can adversely affect the video signal, causing excessive attenuation of the signal (signal loss) and multiple reflections which can cause ghosting (shadows on the picture).







8 Pin A Coded M12 Y Splitter Cable M12 To RJ45 8P8C 5.5x2.1 DC 0

8 Pin A Coded M12 Y Splitter Cable M12 To RJ45 8P8C 5.5x2.1 DC 1
