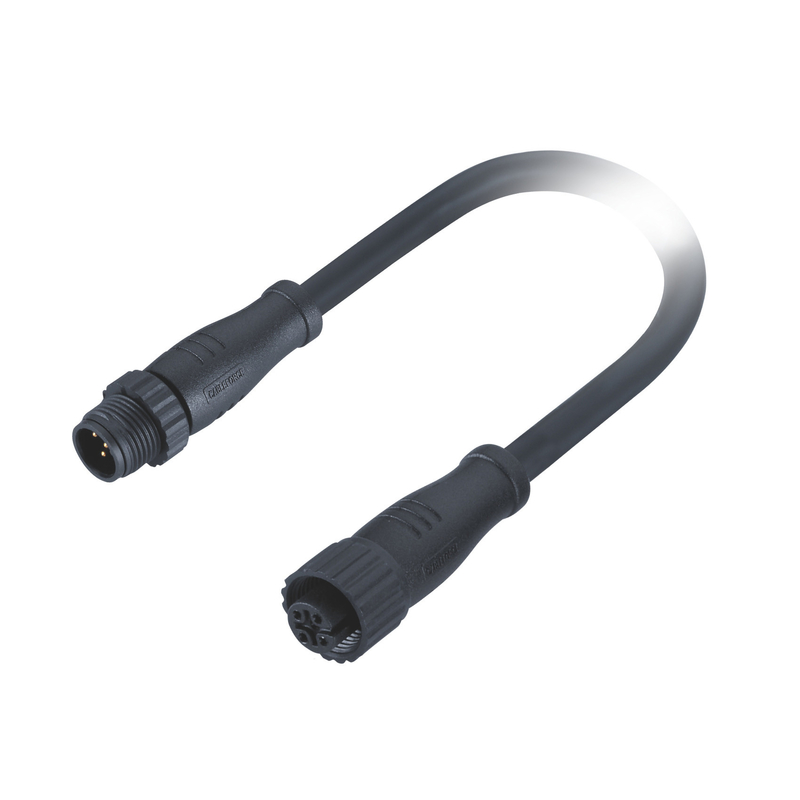

A Code M12 5 Pin Cable 4A 60V Male To Female Unshielded Cable

A Code M12 5 Pin Cable 4A 60V Male To Female Unshielded Cable

  • A Code M12 5 Pin Cable 4A 60V Male To Female Unshielded Cable
A Code M12 5 Pin Cable 4A 60V Male To Female Unshielded Cable
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC05C3LSAP22CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts No.: 5Pin Reference Standard: IEC 61076-2-101
Rated Current: 4A Rated Voltage: 60V
Cable Specification: 0.34mm²(AWG 22) Rated Temperature: Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Screw Nut: PA66+GF, SUS 316 Stainless Steel Contact: Male: Brass, Female: Phosphor Bronze
High Light:

A Code M12 5 Pin Cable

,

M12 5 Pin Cable 4A 60V

M12 A Code Male To Female Circular Connector 5Pin Plastic Screw Molded Unshielded

Connector Technical Data
Contacts No. 5Pin
Reference standard IEC 61076-2-101
Rated current 4A
Rated voltage 60V
Impulse voltage 1500V
Locking system M12×1.0 screw
Tightening torque Recommend: 0.4Nm, Max: 0.8Nm
Termination Soldering
Cable specification 0.34mm²(AWG 22)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut PA66+GF, SUS 316 stainless steel
Contact Male: Brass, Female: Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67, IP68
Pollution degree 3



Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; differentiate itself from B, C, D, X, S, T, K, L, Y-Coding.


CABLEFORCE Product Features

● 3, 4, 5, CAN/DVN, 8, 12, 17 poles are available
Cable length optional: 1, 2, 5M
Cable material optional: PVC, PUR
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements


FAQ

● What is M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.

● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
