1m M12 5 Pin Shielded Cable 16A 690V AC AWG 14 TPU Over Molding

1m M12 5 Pin Shielded Cable 16A 690V AC AWG 14 TPU Over Molding

  • 1m M12 5 Pin Shielded Cable 16A 690V AC  AWG 14 TPU Over Molding
  • 1m M12 5 Pin Shielded Cable 16A 690V AC  AWG 14 TPU Over Molding
1m M12 5 Pin Shielded Cable 16A 690V AC  AWG 14 TPU Over Molding
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC05C1LCKSB14RK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 5 Pin Cable Length: 1M
Connector Gender: Female Or Male Cable Jacket: PVC, PUR
Keyway Coding: K Code Reference Standard: IEC 61076 2 111
Cable Color: Black Termination: Crimping
High Light:

1m M12 5 Pin Shielded Cable

,

AWG 14 M12 5 Pin Shielded Cable

,

TPU M12 5 Pin Cable

Shielded Automation M12 Circular Connector T Code Straight 16A Power Cable balck

Connector Technical Data
Model Number
MC05C1LCKSB14RK10
Connectors No.
5 Pin
Locking System
M12×1.0 Screw
Rated Current 16A
Rated Voltage 690V AC
Impulse Voltage 5000V
Wire Gauge
AWG 14
Over molding
TPU
Screw nut Brass, CNC, nickel plated
Contact
Phosphor bronze
Contact Carrier
PA66 + GF
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

M12 connectors are round connectors with a 12-millimeters locking thread utilized for sensors, actuators, Fieldbus, and industrial Ethernet, principally in factory automation applications. Often with ratings ofIP65, IP68 and IP69K, they are perfect for washdown and corrosive conditions.

The M12 family connectors are usually found in several applications that include; factory automation, measurement and control, communications, food and beverage, transportation, agriculture, robotics, and alternative energy.

When it comes to particular purposes, users must choose the right pin count. For power applications and sensors, 3 and 4 pins are needed. Profinet and Ethernet make use of 4 and 8 pin counts. And Fieldbus, CANbus, and DeviceNet principally use 4 and 5 pin counts. Finally, specify 12 pins for signal specifications.





CABLEFORCE Products Features


● Anti vibration loking screw design
● 360° Shielded or non shilded versions are available
● 2P, 2+3P, 3P, 4P, 5P, 8P, 12P, 17P poles per connector are avaliable
● Customized cable length, with PUR, PVC, LSZH, EtherNet, Profinet

●Railway NFPA 130, NMEA 2000, DeviceNet, CAN, Profibus, CC-Link cable option
●TPU over molded and PA+GF or metal shell



FAQ



 What is EMI Shielding?
EMI Shielding in electronic devices and equipment is the use of manufacturing techniques and materials to protect signals from being disrupted by external electromagnetic signals as well as preventing generated signals from interfering with surrounding components.



Why is EMI Shielding Important?
Electromagnetic interference (EMI) can disrupt electronic devices, equipment, and systems that are used in critical applications. Examples include medical, military, and aerospace electronics; mass transit systems; industrial touch screens; and navigation and vehicular control systems - just to name a few.
The causes of electromagnetic interference are numerous, and include both man-made and natural sources. The results can range from temporary disturbances and data losses to system failure and even loss of life.

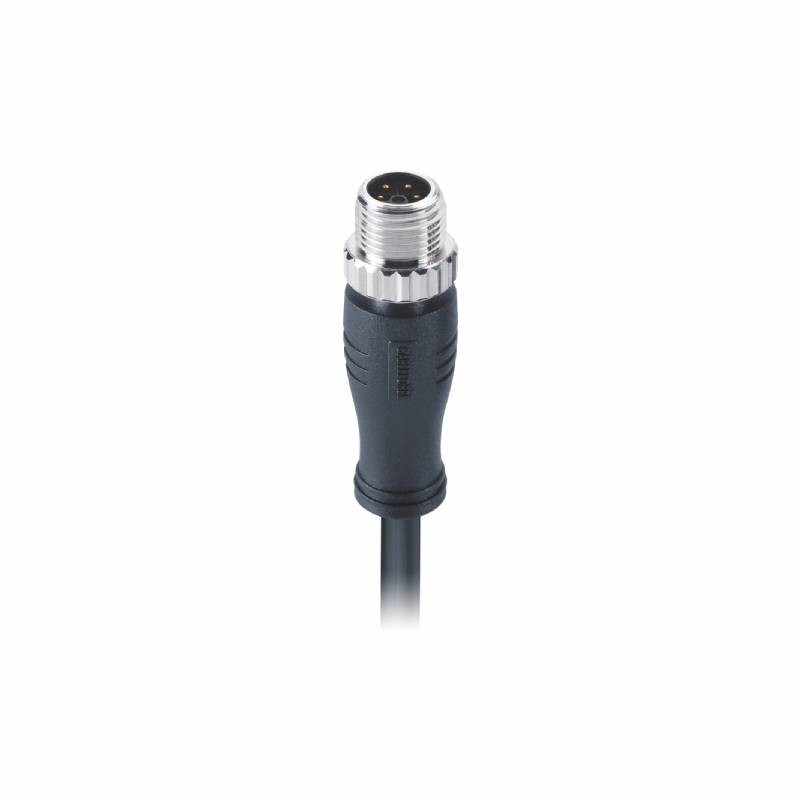

1m M12 5 Pin Shielded Cable 16A 690V AC  AWG 14 TPU Over Molding 0

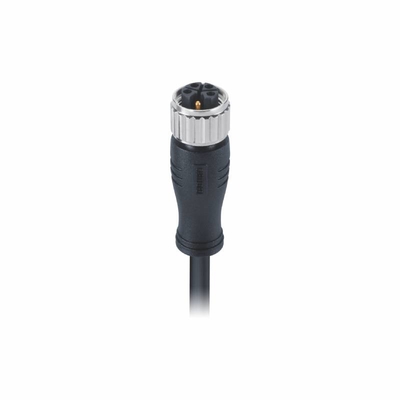

1m M12 5 Pin Shielded Cable 16A 690V AC  AWG 14 TPU Over Molding 1
