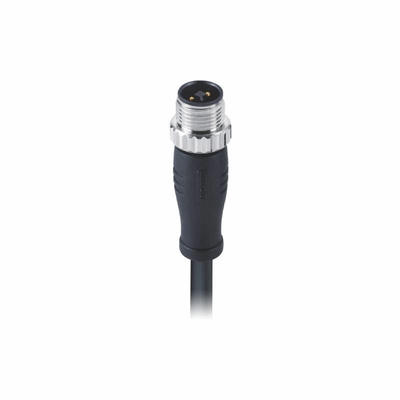

IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector

IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector

  • IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector
  • IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector
IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C1RCTB16CK10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 4 Pin Cable Length: 1M
Connector Gender: Male Cable Jacket: PVC, PUR
Keyway Coding: T Code Reference Standard: IEC 61076 2 111
Cable Color: Black Termination: Crimping
High Light:

IEC 61076 2 111 Sensor Actuator Cable

,

M12 4 Pin Sensor Actuator Cable

,

M12 4 Pin Waterproof Cable Connector

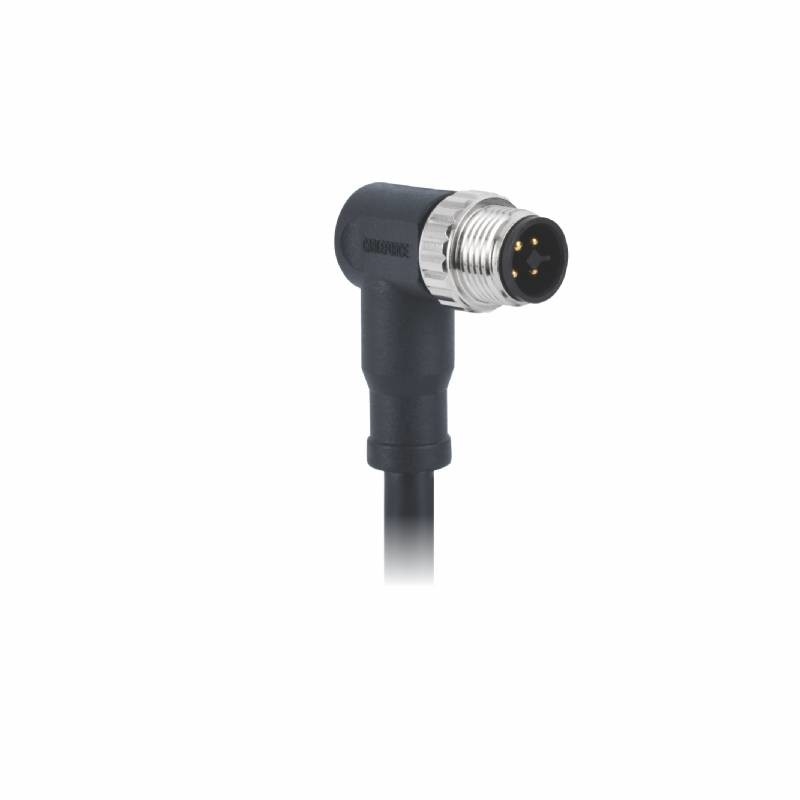

Unshielded M12 Circular Connector Male T Code Right Angle With 12A Power Cable

Connector Technical Data
Model Number
MC04C1RCTB16CK10
Connectors No.
4 Pin
Locking System
M12×1.0 Screw
Rated Voltage
63V AC
Impulse Voltage 1500V
Wire Gauge
1.5mm²
Over molding
TPU
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
Contact Carrier
PA66 + GF
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

M12 T Coding 4 Pin Cable Connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 4 poles, compliant with IEC 61076 2 111 and mainly designed for servo motor's power transmission.





CABLEFORCE Products Features


● IP67 IP68 IP69K and UL approvals
● 360° Shielded or non shilded versions are available
● 2P, 2+3P, 3P, 4P, 5P, 8P, 12P, 17P poles per connector are avaliable
● TPU over molded and PA+GF or metal shell
● Application : Power cable





FAQ



What does the coding mean on M12 connectors?

When it comes to specific applications, users must select the right pin count. For sensors and power applications, 3 and 4 pins are required. Profinet and Ethernet use 4 and 8 pin counts. And Fieldbus, CANbus and DeviceNet primarily use 4 and 5 pin counts. Finally, specify 12 pins for signal requirements.



● What is power cable?

A cable used for the transmission and distribution of electrical energy is called electrical power cable. Power cable consists two or more electrical conductors join with an over sheath.





IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector 0IEC 61076 2 111 Sensor Actuator Cable M12 4 Pin Waterproof Cable Connector 1
