Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded

Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded

  • Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded
  • Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded
Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC05C2LSAB22CK20 - N2K
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 05 Pin( CAN / DVN ) Contact: Male : Brass, Female : Phosphor Bronze
EMC Shielding Or LED: Unshielded Cable Length: 1M
Connector Gender: Male Connector Cable Jacket: PVC
Keyway Coding: A Coding Reference Standard: IEC 61076 2 101
High Light:

Plastic M12 A Coded Cable

,

Unshielded M12 A Coded Cable

M12 Circular Connector Female Straight A Code CAN DVN Molded Unshielded Plastic

Connector Technical Data
Model Number
MC05C2LSAB22CK20 - N2K
Connectors No.
05 Pin( CAN / DVN )
Rated Current
4A
Rated Voltage
60V
Impulse Voltage
1500V
Wire Gauge
0.34mm² ( AWG 22 )
Tightening Torque
Recommend : 0.4Nm, Max : 0.8Nm
O-ring
FKM Silicon O Ring
Screw Nut
Brass CNC Nickel plated
Protection degree
Soldering
Contact Plating
IP67 IP68
Rated Temperature
Flexible: - 25℃~ + 80℃  Static: - 40℃ ~ + 80℃


Description

The M12 metric size A Coding connectors, based on IEC 61076 2 101 standard, it is the most commonly used connector in the factory automation.The M12 A Code product line from CABLEFORCE Connector are standard products used in industrial automation, outdoor applications, measurement and control, agriculture and more. A code M12 connectors are often used for sensors and DC power.
The number gives their outer screw thread diameter in millimeters as with the identically named screws.  CABLEFORCE M12 A Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable.





CABLEFORCE Products Features

● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.



FAQ



What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.



What is difference between shielded and unshielded cable?

Shielded twisted pair cable (STP) has the individual pairs of wires wrapped in foil, which are then wrapped again for double protection. Unshielded twisted pair cable (UTP) has each pair of wires twisted together. Those wires are then wrapped in tubing without any other protection.

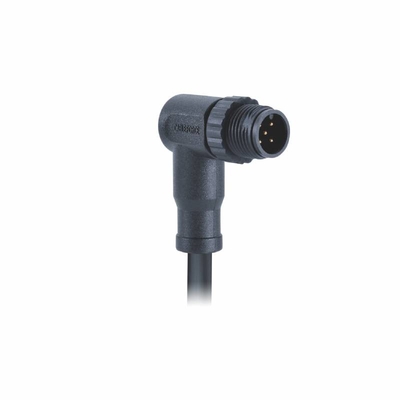

Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded 0

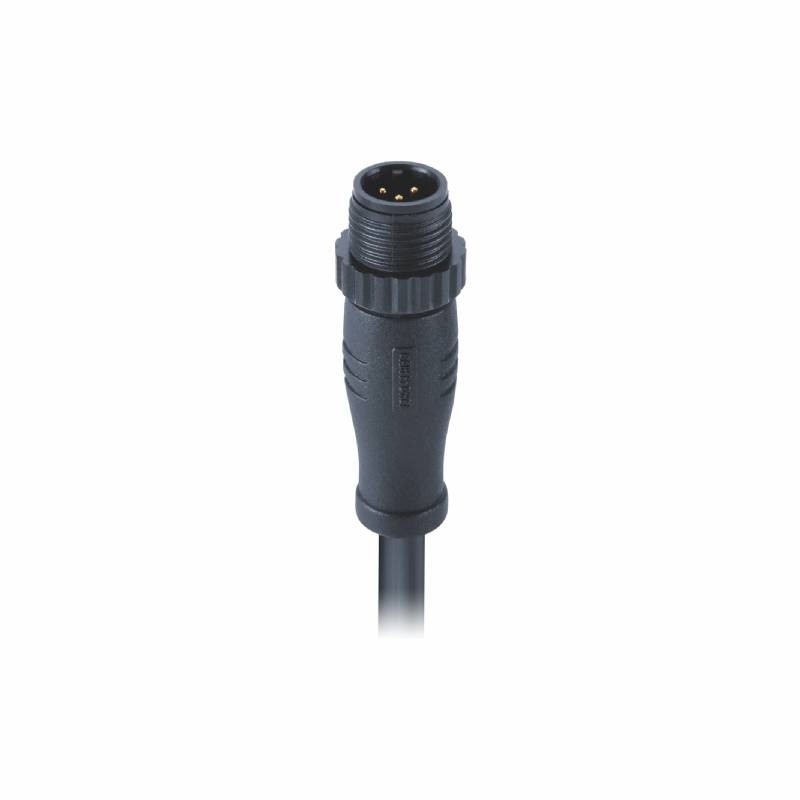

Plastic M12 A Coded Cable CAN DVN 5 Pin Molded Cable Unshielded 1
