| Place of Origin: | Guangdong, China |
| Brand Name: | CABLEFORCE |
| Certification: | UL Certified, CUL Certified, CE/ EMC, IP67, IP69K |
| Model Number: | R88A-CAKA001.5CR |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Our standard packing: Individual part with transparent PE bag with label, OEM packing available. |
| Delivery Time: | 2~3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 60000 pcs/month |

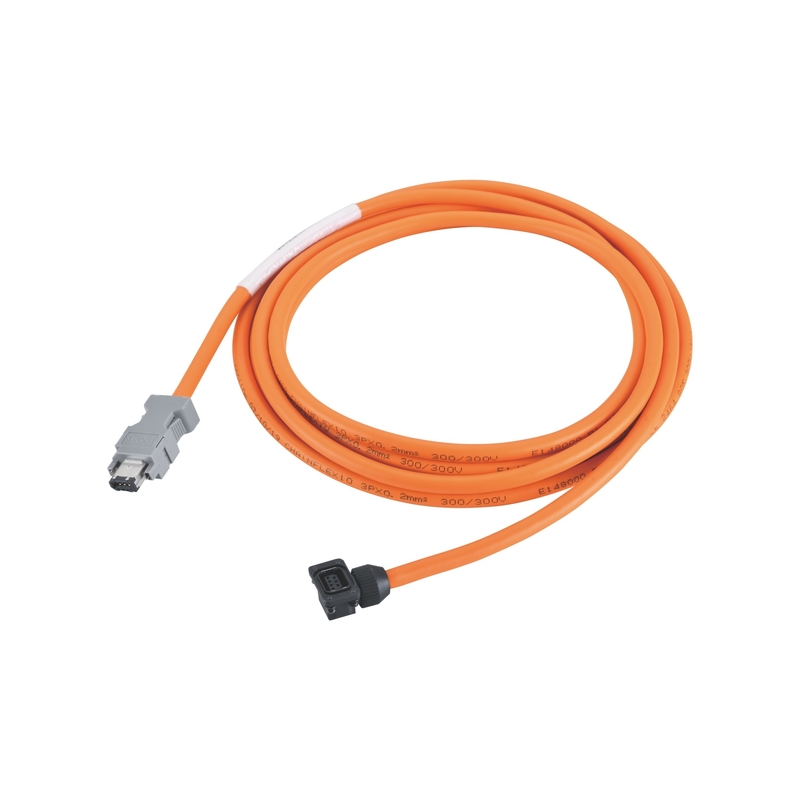

| Connector Type: | Servo Motor Control Cable | Contacts No.: | Molex IEEE 1394 Male 6Pin, JN6 Female 7Pin |
|---|---|---|---|
| Rated Current: | 2A | Rated Voltage: | 60V |
| Cable Specification: | 0.2mm² (AWG 24) | Rated Temperature: | -40℃ ~ +105℃ |
| Bending Radius: | 8×OD | Drag Chain Bending: | 10 Million Times |
| High Light: | AWG 24 Servo Motor Power Cable,IEEE 1394 JN6 Servo Motor Power Cable |
||
| Connector Technical Data | |
| Contacts No. | Molex IEEE 1394 Male 6Pin, JN6 Female 7Pin |
| Rated current | 2A |
| Rated voltage | 60V |
| Impulse voltage | 1500V |
| Termination | Crimping |
| Wire gauge | 0.2mm²(AWG 24) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +105℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Housing | PA66 |
| Contact | Brass |
| Contacts plating | Au(Gold) / TIN |
| Bending radius | 8×OD |
| Drag chain bending | 10 Million times |
| Pollution degree | 3 |
Applications
It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields.
FAQ
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
● What is the after-sale service?
If any problem cause by our side, we would surely help customers to solve these problems. Refund money, or resend goods, or other ways.
