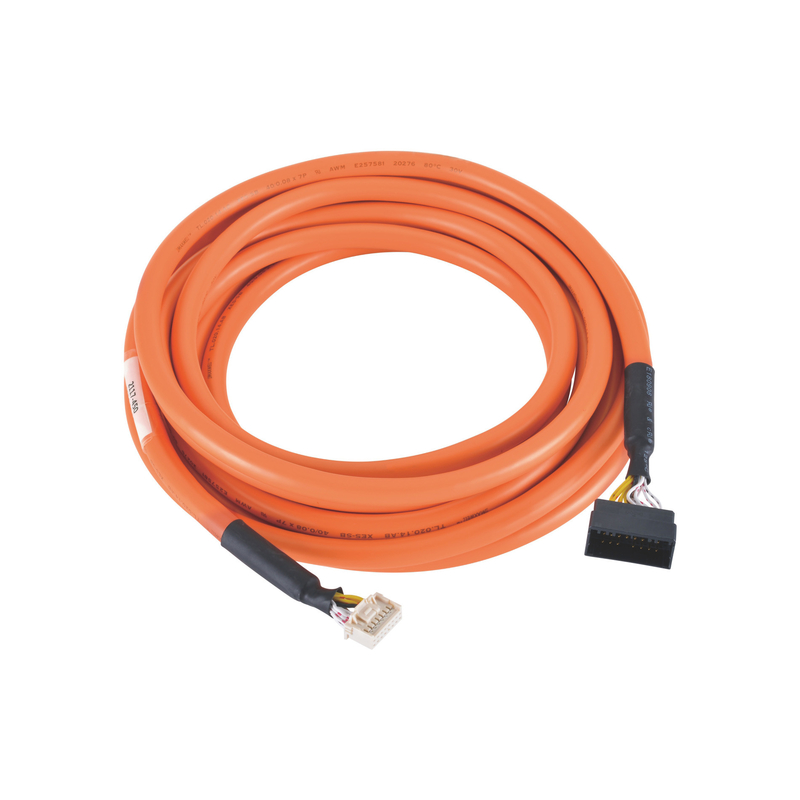

1.5M Electrical Wire Harness Servo Motor Cable TE And Molex Connectors

1.5M Electrical Wire Harness Servo Motor Cable TE And Molex Connectors

  • 1.5M Electrical Wire Harness Servo Motor Cable TE And Molex Connectors
1.5M Electrical Wire Harness Servo Motor Cable TE And Molex Connectors
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: Servo Motor Control Cable Reference Standard: IEC 61076-2-101
Cable Length: 1.5M Cable Specification: 0.25mm² (AWG 24)
Rated Current: 2A Rated Voltage: 60V
Termination: Crimping Rated Temperature: -40℃ ~ +105℃
High Light:

1.5M Electrical Wire Harness

,

Servo Motor Electrical Wire Harness

,

TE Molex Servo Motor Cable

Servo Motor Control Cable With TE: 1-1903130-0 And Molex: 5016461600 Connectors

Connector Technical Data
Contacts No. TE: 1-1903130-0 Male 20Pin, Molex: 5016461600 Female 16Pin
Rated current 2A
Rated voltage 60V
Impulse voltage 1500V
Termination Crimping
Wire gauge 0.25mm²(AWG 24)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +105℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Housing PA66
Contact Brass
Contacts plating TIN
Bending radius 5×OD
Drag chain bending 10 Million times
Pollution degree 3


Wire Length and Part Number

1.5M Part Number: 2117-150
2.0M Part Number: 2117-200
2.5M Part Number: 2117-250
3.0M Part Number: 2117-300
3.5M Part Number: 2117-350
4.0M Part Number: 2117-400
4.5M Part Number: 2117-450
5.0M Part Number: 2117-500


CABLEFORCE Products Features

● Low Smoking Zero Halogen
● RoHS Compliant
● UL94 Flame Retardent
● Suitable for railway applications
● High-Low temperature resistant
● Electromagnetic resistant
● Oil, coolants, lubricants and emulsion resistance
● Drag chain suitability
● UV resistance



FAQ


● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.



● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.



● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.



● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
