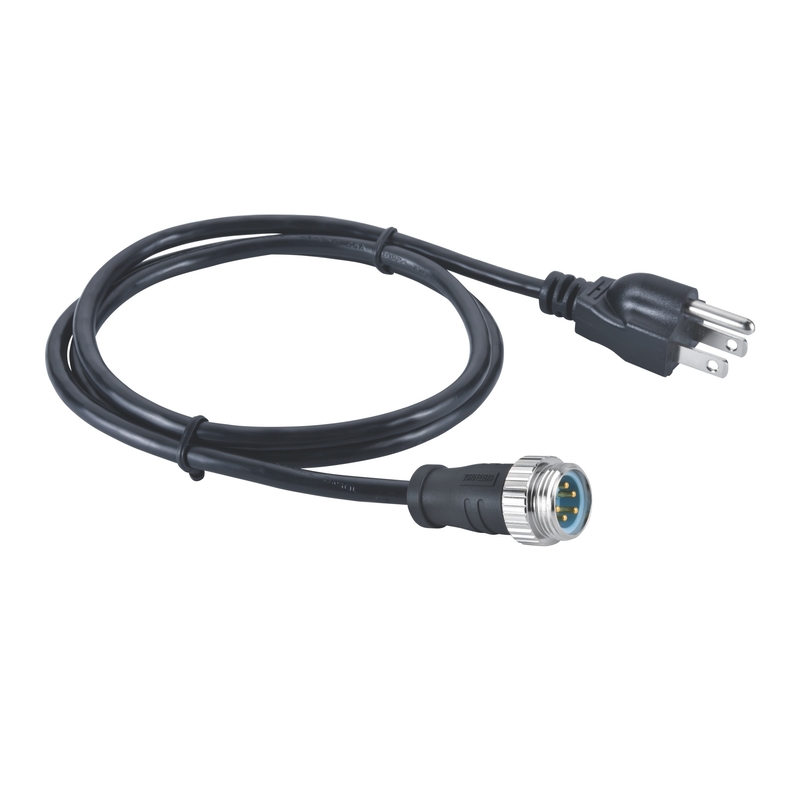

9A 300V PVC Jacket Cable IP67 Mini Change Connector To US Power Plug

9A 300V PVC Jacket Cable IP67 Mini Change Connector To US Power Plug

  • 9A 300V PVC Jacket Cable IP67 Mini Change Connector To US Power Plug
9A 300V PVC Jacket Cable IP67 Mini Change Connector To US Power Plug
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MF05C1LCAB-NE5-16CK15
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Connector Type: 7/8" Power Cord Cable Specification: 3.15mm² (AWG 16) PVC Cable
Termination: Crimping Rated Temperature: -25℃ ~ +80℃
Rated Current: 9A Rated Voltage: 300V
Protection Degree: IP67, IP68 Warranty: 1 Year
High Light:

9A 300V PVC Jacket Cable

,

PVC Jacket Cable IP67

7/8" 5Pin Male Connector To NEMA 5-15P US Power Plug Molded 3×16 AWG PVC Jacket Cable

Connector Technical Data
Rated current 9A
Rated voltage 300V
Impulse voltage 2500V
Termination Crimping
Wire gauge 3×1.5mm²(AWG 16) PVC Cable
Rated temperature Flexible: -25℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF, Black
Screw nut Brass, CNC, Nickel-plated
Contact Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon
Protection degree IP67, IP68
Pollution degree 3


Wire Length and Part Number

1.5M Part Number: MF05C1LCAB-NE5-16CK15
2.0M Part Number: MF05C1LCAB-NE5-16CK20
2.5M Part Number: MF05C1LCAB-NE5-16CK25
3.0M Part Number: MF05C1LCAB-NE5-16CK30
3.5M Part Number: MF05C1LCAB-NE5-16CK35
4.0M Part Number: MF05C1LCAB-NE5-16CK40
4.5M Part Number: MF05C1LCAB-NE5-16CK45
5.0M Part Number: MF05C1LCAB-NE5-16CK50





CABLEFORCE Products Features

● Low Smoking Zero Halogen
● RoHS Compliant
● UL94 Flame Retardent
● Suitable for railway applications
● High-Low temperature resistant
● Electromagnetic resistant
● Oil, coolants, lubricants and emulsion resistance
● Drag chain suitability
● UV resistance





FAQ



● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.



● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.



● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
