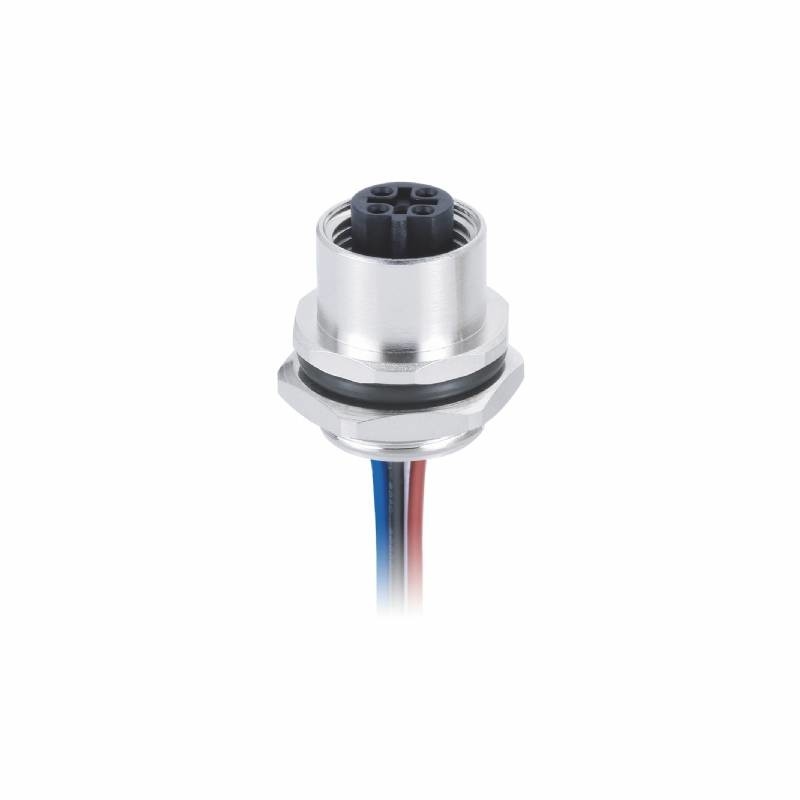

Profinet M12 Circular Connector 4 Pin M12 x 1.0 Screw Loking system

Profinet M12 Circular Connector 4 Pin M12 x 1.0 Screw Loking system

  • Profinet M12 Circular Connector 4 Pin M12 x 1.0 Screw Loking system
Profinet M12 Circular Connector 4 Pin M12 x 1.0 Screw Loking system
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: CUL Certified, IP67, IP69K
Model Number: MC04P4LSDB2022W02
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 04 Pin Cable Length: 0.2M
Contact: Brass Keyway Coding: D Coding
Tightening Torque: 0.6Nm Cable Color: Yellow, White, Orange, Blue
Wire Gauge: 0.34 M㎡ Contacts Plating: Gold
High Light:

Screw Loking M12 Circular Connector

,

4 Pin M12 Circular Connector

,

4 Pin Profinet M12 Connector

Profinet M12 Circular Connector M12 Panel Rear Fastened Connector M20 X 1.5

Connector Technical Data
Model Number
MC04P4LSDB2022W02
Connectors No.
4 Pin
Rated Current
4A
Rated Voltage
250V
Impulse Voltage
2500V
Loking system M12 x 1.0 Screw
Insulation resistance 100MΩ
Contact resistence 5MΩ
Termination Soldering
Contact Brass
Screw nut Brass, CNC, Nickled plated


Description

While higher pin counts are not planned, other locking styles such as bayonet and push-pull are continuously under development. M12 connectors are circular connectors with a 12-mm locking thread used for sensors, actuators, Fieldbus and industrial Ethernet, primarily in factory automation applications. Often with ratings ofIP65, IP68 and IP69K, they are ideal for washdown and corrosive environments.



Application


Miniature sensors

Industrial camera

Electrical bike

Packaging, Labeling & Logistic

Factory automation and fieldbus module



FAQ



● What is male connector?

A male connector or male port is a connector or port with pins instead of holes. These connectors are inserted into a female connector. Good examples of male connectors are power plugs and coaxial cables.



Profinet M12 Circular Connector 4 Pin M12 x 1.0 Screw Loking system 0Profinet M12 Circular Connector 4 Pin M12 x 1.0 Screw Loking system 1
