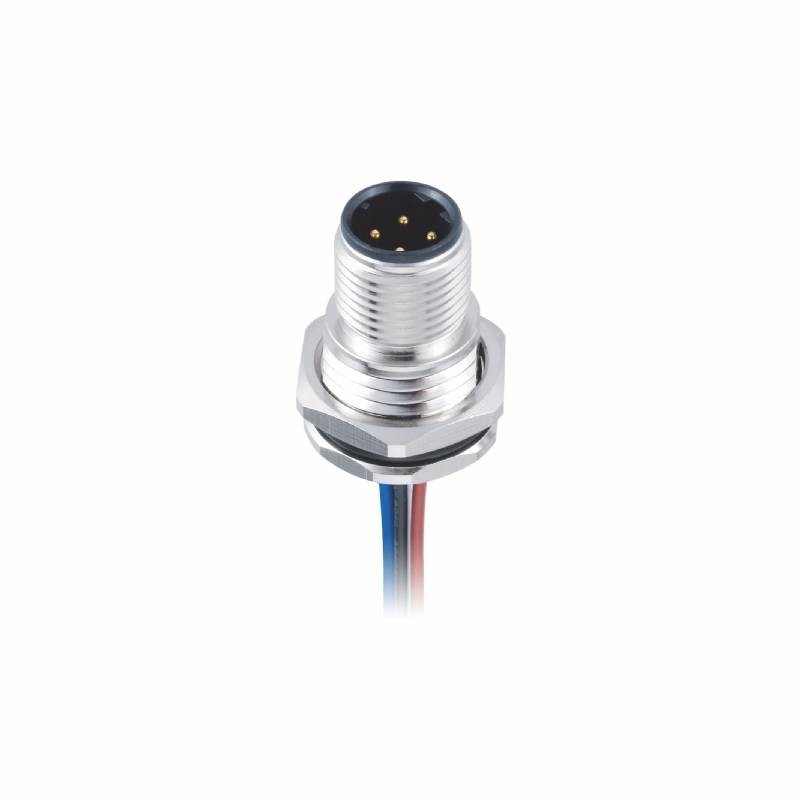

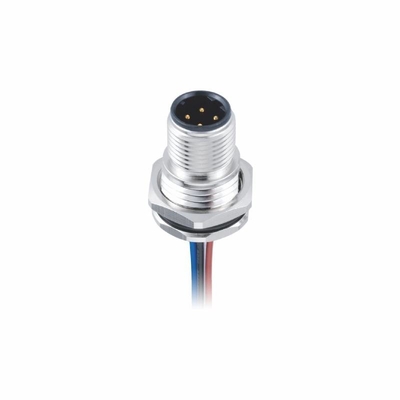

D Code M12 Circular Connector Profinet Factor Automation PG9 Front Fastened

D Code M12 Circular Connector Profinet Factor Automation PG9 Front Fastened

  • D Code M12 Circular Connector Profinet Factor Automation PG9 Front Fastened
D Code M12 Circular Connector Profinet Factor Automation PG9 Front Fastened
Product Details:
Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: CUL Certified, IP67, IP69K
Model Number: MC04P1LSDB20-22W10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Contact Now
Detailed Product Description
Contacts Poles: 04 Pin Cable Length: 1M
Contact: Brass Keyway Coding: D Coding
Tightening Torque: 0.6Nm Cable Color: Brown, White, Blue, Black
Wire Gauge: 0.34 M㎡ Contacts Plating: Au
High Light:

D Code M12 Circular Connector

,

Front Fastened M12 Circular Connector

,

Profinet M12 D Coded Connector

Profinet Factor Automation M12 Circular Connector D Code PG9 Front Fastened

Connector Technical Data
Model Number
MC04P1LSDB20-22W10
Connectors No.
4 Pin
Rated Current
4A
Rated Voltage
250V
Impulse Voltage
2500V
O ring FKM, Silicon
Insulation resistance 100MΩ
Contact resistence 5MΩ
Termination Soldering
Contact Phosphor bronze
Screw nut Brass, CNC, Nickled plated


Description

A basic PIC typically contains a power outlet (single, duplex, or GFCI) along with one or more of the connectors commonly used by the PLC, computer, or other programmable devices within the control cabinet. These connectors include but are not limited to D-Subminiature (9, 15, 25, 37, or high density 15,) RJ45, RJ11, mini Din, BNC, USB, Ethernet, & Device Net.They are available with 3, 4, 5, 8 and 12 pins. While higher pin counts are not planned, other locking styles such as bayonet and push-pull are continuously under development. M12 connectors are circular connectors with a 12-mm locking thread used for sensors, actuators, Fieldbus and industrial Ethernet, primarily in factory automation applications. Often with ratings ofIP65, IP68 and IP69K, they are ideal for washdown and corrosive environments.



Products Feature


M12*1 thread locking mechanism, anti-vibration locking design;

Easy quick connect and disconnect coupling;

Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;

A, B, C, D, K, L, X, S, T coding available;

Meets IP67/IP68 waterproof requirements;

Temperature Range: -25°C ~ + 85°C ;

Alternative mount arrangements for solder cup or PCB;

Panel Mount and distribution version available;

Available as a loose piece or as a pre-made M12 cables;



FAQ



● Why should I use a PIC??

The ability to interface with the contents of the cabinet without opening the door helps eliminate some potential safety hazards associated with having an open electrical panel. One of the main safety concerns is arc flash.D Code M12 Circular Connector Profinet Factor Automation PG9 Front Fastened 0
