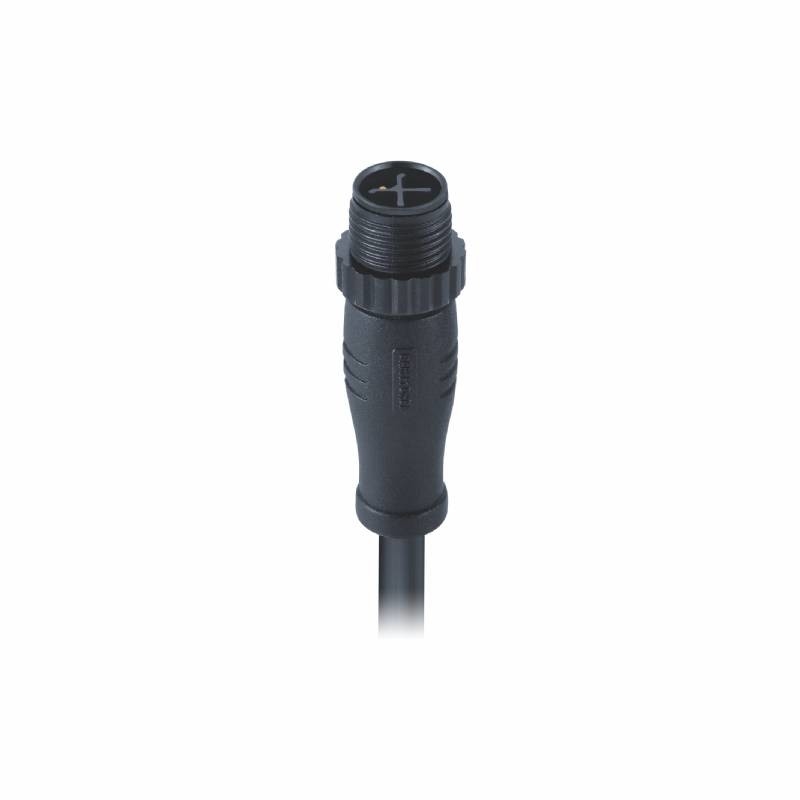

S Code M12 3 Pin Connector

S Code M12 3 Pin Connector
S Code M12 3 Pin Connector S Code M12 3 Pin Connector

Large Image :  S Code M12 3 Pin Connector

Product Details:

Place of Origin: Guangdong, China
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C1LCSP16CK10

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Contacts Poles: 2 + PE (3Pin) Cable Length: Customized
Connector Gender: Male Connector Cable Jacket: PVC Or PUR
Keyway Coding: S Code Reference Standard: IEC 61076 2 111
EMI Shielding Or LED: Unshielded Termination: Crimping
High Light:

S Code M12 3 Pin Connector


12A M12 3 Pin Connector

Plastic M12 S Code 3pin Circular Connector Male Molded With 12A Power Cable
Connector Technical Data
Model Number
Connectors No.
2+PE (3 Pin)
Contact Brass
Rated Voltage
630V AC
Impulse Voltage 5000V
Wire Gauge
1.5mm²(AWG 16)
Insulation Resistance
Contact Resistance
Contact Carrier
PA66 + GF
Pollution degree
Protection Degree
M12 S-Coding 3Pin(2+PE) or 4Pin (3+PE) Cable Connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 4-poles, compliant with IEC 61076-2-111 and mainly designed for servo motor's power transmission.
Use a totally protected shield and PE connection in your power transmission. Advanced Shielding Technology from Phoenix Contact optimizes the current design of M12 connectors. Liquid metal that completely encloses the cable shielding during the manufacturing process enables the reliable and safe operation of your systems. The material-bonding 360° shielding not only provides improved EMC protection, but also boosts performance. The liquid metal also establishes the connection between the PE contact and the metal-conductive M12 knurl. Advanced Shielding Technology thus ensures greater safety and reduces the risk of fire in the event of a short circuit.



CABLEFORCE Products Features

● IP67 IP68 IP69K and UL approvals
● Customized cable length with PUR PVC LSZH Ethernet Profinet
● Application : Sensors, Actuators, Encoders, Servo motors
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.





● What is the M12 power code on a motor?

The M12 POWER S, K, and M codings are designed for AC applications such as the power connection of a three-phase motor. The M coding also supplies 5 and 6 pos. loads with up to 8 A and 690 V.


● What is EMI shielding?

EMI Shielding in electronic devices and equipment is the use of manufacturing techniques and materials to protect signals from being disrupted by external electromagnetic signals as well as preventing generated signals from interfering with surrounding components.

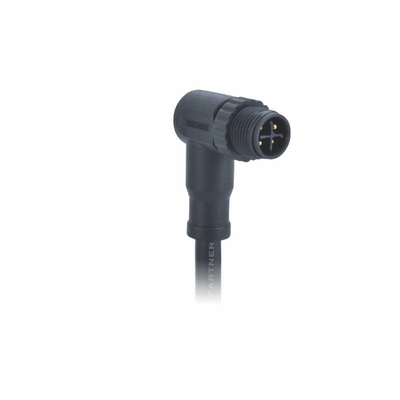

S Code M12 3 Pin Connector 0

S Code M12 3 Pin Connector 1
