Unshielded M12 Circular Connector

Unshielded M12 Circular Connector

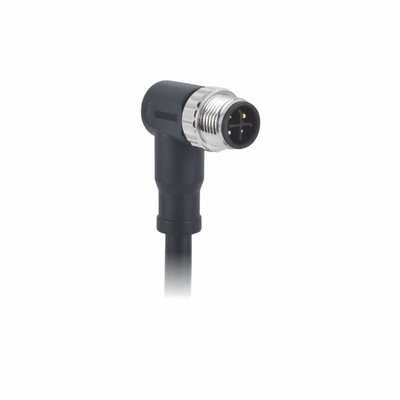

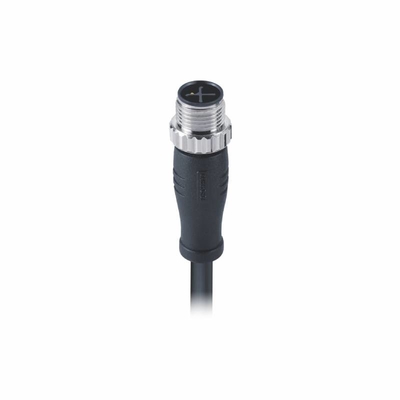

Unshielded M12 Circular Connector Unshielded M12 Circular Connector

Large Image :  Unshielded M12 Circular Connector

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC03C1LCSB16CK10

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Contacts Poles: 2 + PE (3Pin) Cable Length: 1M
Connector Gender: Male Connector Cable Jacket: PVC Or PUR
Keyway Coding: S Code Reference Standard: IEC 61076 2 111
Cable Color: Black Termination: Crimping
High Light:

Unshielded M12 Circular Connector

,

12A M12 Circular Connector

Unshielded M12 Circular Connector Female S Code Male Molded With 12A Power Cable

Connector Technical Data
Model Number
MC03C1LCSB16CK10
Connectors No.
2+PE (3Pin)
Locking System
M12×1.0 Screw
Rated Voltage
630V AC
Impulse Voltage 5000V
Wire Gauge
1.5mm²(AWG 16)
Over molding
TPU
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
Contact Carrier
PA66 + GF
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68


Description

M12 S Coding 3Pin(2+PE) or 4Pin (3+PE) Cable Connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 4 poles, compliant with IEC 61076 2 111 and mainly designed for servo motor's power transmission.





CABLEFORCE Products Features


● IP67 IP68 IP69K and UL approvals
● Customized cable length with PUR PVC LSZH Ethernet Profinet
● Anti-vibration locking screw design
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● Application : Profibus
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.



FAQ



What is M12 coding?

Simply put, M12 codes are designed to keep cables mating with the correct connections to ensure that, for example, an AC power cable is not being hooked up with an Ethernet cable.



● What is M12 Ethernet?

The M12 four-pin plug connector with D coding has already been defined as an Industrial Ethernet standard according to IEC 61067 2 101 Amendment 1. PNO also supports the use of this connector type and has included it within its Profinet cabling specifications alongside the RJ45 push-pull connector.



What is EMI and RFI shielding?

EMI shielding and RFI Shielding reduces electronic malfunction susceptibility by blocking unwanted external electromagnetic waves or preventing internal electromagnetic waves from emitting and interfering other circuits or devices.
