EMI Shielded M12 4 Pin Male Connector

China Dongguan Cableforce Electronics Co., Ltd certification
China Dongguan Cableforce Electronics Co., Ltd certification
I'm Online Chat Now

EMI Shielded M12 4 Pin Male Connector

EMI Shielded M12 4 Pin Male Connector
EMI Shielded M12 4 Pin Male Connector

Large Image :  EMI Shielded M12 4 Pin Male Connector

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C1LSAB22CK10

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Contacts Poles: 04 Pin Contact: Male: Brass, Female: Phosphor Bronze
EMC Shielding: Shielded Cable Length: 1M
Connector Gender: Female Connector Cable Jacket: PVC
Keyway Coding: A Coding Reference Standard: IEC 61076-2-101
High Light:

EMI Shielded M12 4 Pin Male Connector

,

A Code M12 4 Pin Male Connector

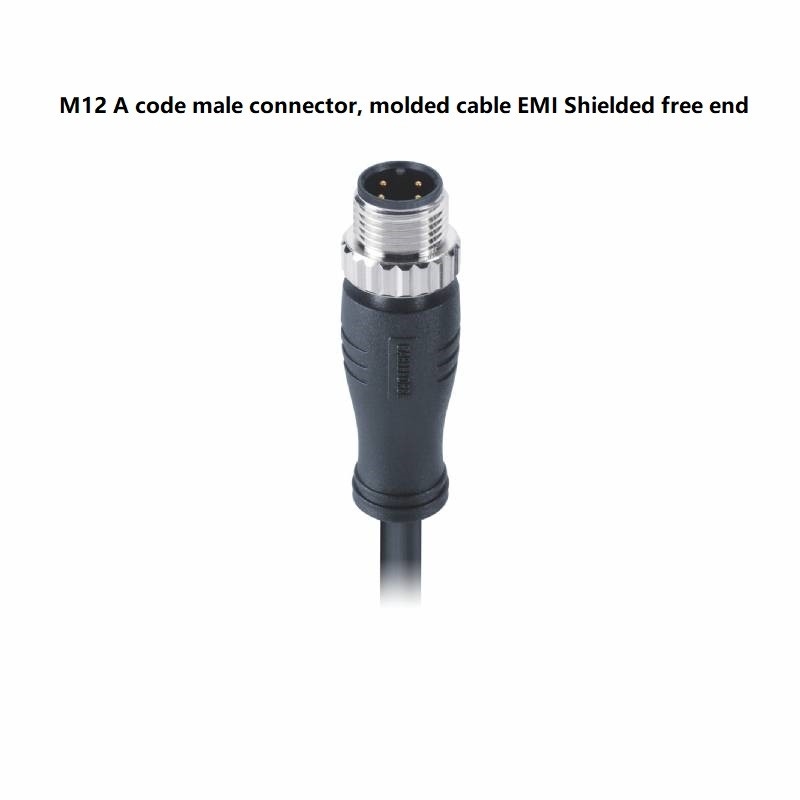

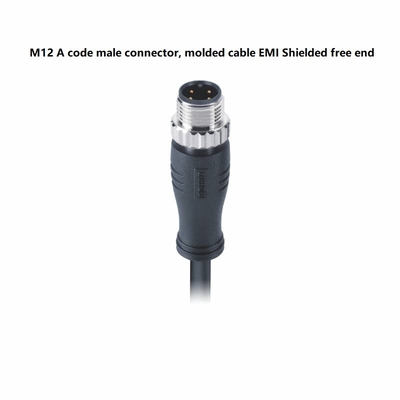

EMI Shielded M12 4pin Male Circular Connector Straight A Code Molded 1M

Connector Technical Data
Model Number
MC04C1LSAB22CK10
Connectors No.
4Pin
Rated Current
4A
Rated Voltage
250V
Impulse Voltage
2500V
Wire Gauge
0.34mm²(AWG 22)
Tightening Torque
Recommend: 0.4Nm, Max: 0.8Nm
Contact carrier
TPU+GF
Over-molding
TPU
Termination
Soldering
Contact Plating
Au(Gold)
Rated Temperature
Flexible: -25℃~+80℃, Static: -40℃~+80℃


Description

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins. Users must select the correct pin count for specific applications. Sensors and power applications require 3 and 4 pins; PROFINET and ethernet require 4 and 8 pin counts; Fieldbus, CAN bus, and DeviceNet typically use 4 and 5 pin counts; and 12 pins are used for signal requirements. Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.





CABLEFORCE Products Features

● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.



FAQ



What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.



What is the difference between an M8 and M12 connector?

Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for fieldbus connections. ... The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.





EMI Shielded M12 4 Pin Male Connector 0

EMI Shielded M12 4 Pin Male Connector 1









Contact Details
Dongguan Cableforce Electronics Co., Ltd

Contact Person: Marco Yang

Tel: 13509009528

Send your inquiry directly to us (0 / 3000)
