Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Coding: | A Coding | Gender: | Male To Femal |
|---|---|---|---|
| Reference Standard: | IEC 61076-2-101 | Rated Current: | 4A |
| Rated Voltage: | 250V | Impulse Voltage: | 2500V |
| Contact Carrier: | TPU+GF | Series: | M12 I-Adapter Connector |

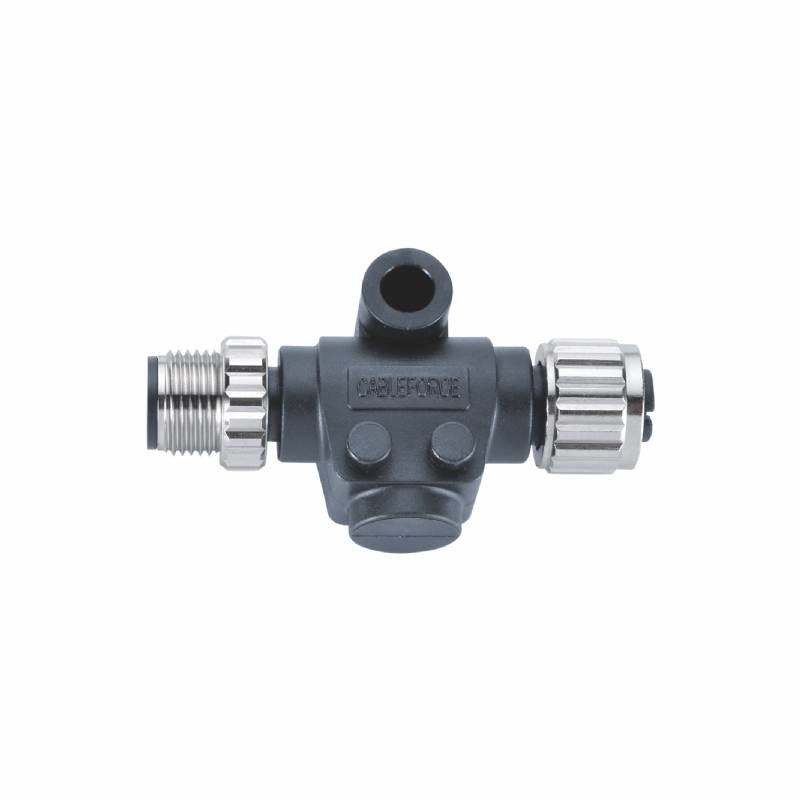

| High Light: | M12 NMEA Cable Connectors,120 Ohm Resistor NMEA Cable Connectors |
||
|
Connector Technical Data
|
|||||||||
| Model Number | MC03T6-CMFAB | ||||||||
| Contact No | 3 pin | ||||||||
| Coding |
A coded
|
||||||||
| Screw Type | Metal Screw or Plastic Screw | ||||||||
| Locking |
M12 x 1.0 screw
|
||||||||
| Contact plating |
Au (Gold)
|
||||||||
|
Type
|
M12 I-Adapter Connector | ||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
|
Screw Nut
|
Brass,CNC,Nickel plated
|
||||||||
|
Contact
|
Male: Brass, Female: Phosphor bronze
|
||||||||
| O-ring | FKM Silicon | ||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
● Electrical T connector
● Favorable waterproof feature: IP67 degree
● TPU over molded and PA+GF or metal shell
● Over-molding fixing style, easy to operate
● 3P 4P 5P 8P are available
● A code B code D code are available
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.
FAQ
● Are NMEA 2000 connectors waterproof?
To be completely waterproof, the connectors would have to be IPX8, and commonly IPX9K rated. Our connectors are rated to IP67 when mated. For more information on NMEA 0183 and how it works, please download our free guide to NMEA 0183 networking.
● Does NMEA 2000 provide power to devices?
Yes, any NMEA 2000 network needs power. A large amount of NMEA 2000 devices are powered solely from the backbone, and this power is used to operate the device. Whilst this is the case for most devices, not all devices are powered from the NMEA 2000 network completely.
