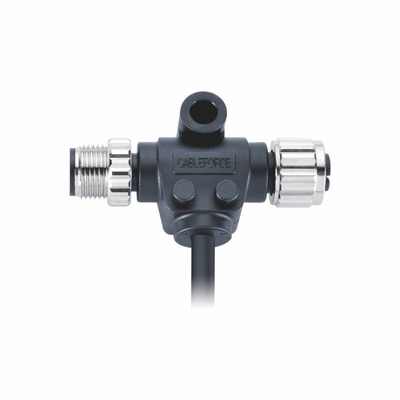

M12 NMEA 2000 Cable Connectors

M12 NMEA 2000 Cable Connectors
M12 NMEA 2000 Cable Connectors

Large Image :  M12 NMEA 2000 Cable Connectors

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC03T6-CMFAB

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Coding: A Coding Gender: Female To Male X 2
Reference Standard: IEC 61076-2-101 Rated Current: 4A
Rated Voltage: 250V Impulse Voltage: 2500V
Contact Carrier: TPU+GF Series: NMEA 2000 Power Tap
High Light:

M12 NMEA 2000 Cable Connectors

,

Ip67 NMEA 2000 Cable Connectors

M12 NMEA 2000 Power-Tap Connector Male To Femal Molded Ip67 Ip68

Connector Technical Data
Model Number MC03T6-CMFAB
Contact No 3 pin
Coding
A coded
Shield Shielded
Locking System
M12 x 1.0 screw
Contact plating
 Au (Gold)
Type
Power Tap
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel plated
Contact
Male: Brass, Female: Phosphor bronze
O-ring FKM Silicon
Protection Degree
IP67,IP68


Description

M12 T-adapters splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously.





CABLEFORCE Products Features


Electrical T connector

Favorable waterproof feature: IP67 degree

● TPU over molded and PA+GF or metal shell
● Over-molding fixing style, easy to operate

● 3P 4P 5P 8P are available

● A code B code D code are available
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● RoHS, REACH compliant.





FAQ



How does power tap work?

PowerTap hub-based power meters work by measuring the amount of force, or torque, at the rear hub using strain gauges embedded within the hub. The PowerTap hub also measures the speed of the hub by using a speed sensor within the hub and a magnet attached to the axle.



Are NMEA 2000 connectors waterproof?

To be completely waterproof, the connectors would have to be IPX8, and commonly IPX9K rated. Our connectors are rated to IP67 when mated. For more information on NMEA 0183 and how it works, please download our free guide to NMEA 0183 networking.



● Does NMEA 2000 provide power to devices?

Yes, any NMEA 2000 network needs power. A large amount of NMEA 2000 devices are powered solely from the backbone, and this power is used to operate the device. Whilst this is the case for most devices, not all devices are powered from the NMEA 2000 network completely.





M12 NMEA 2000 Cable Connectors 0M12 NMEA 2000 Cable Connectors 1
