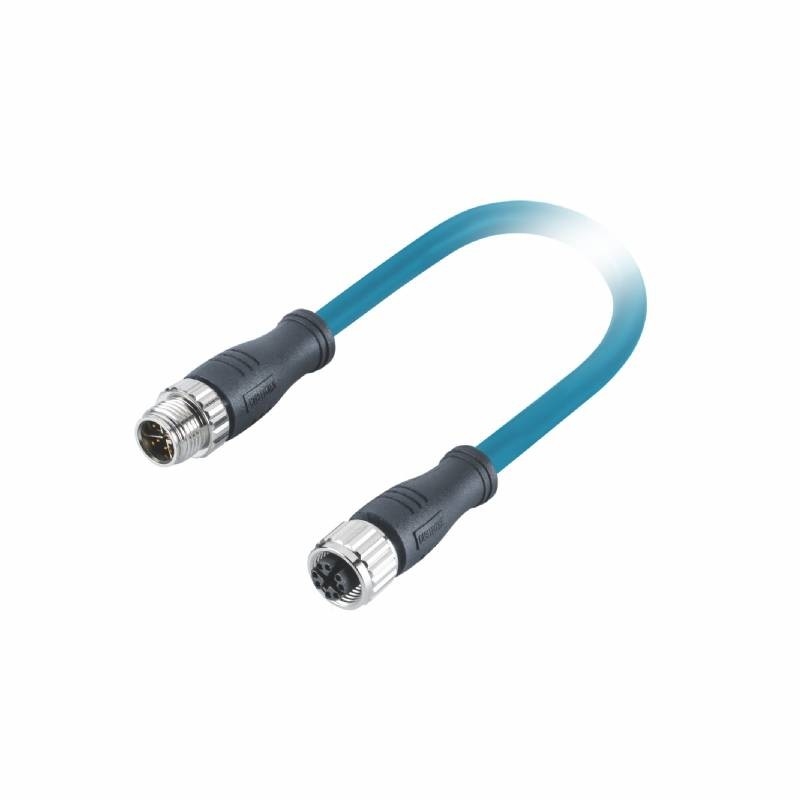

M12 Cat 6A Shielded Cable

M12 Cat 6A Shielded Cable
M12 Cat 6A Shielded Cable

Large Image :  M12 Cat 6A Shielded Cable

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC08C3LSXSB26RG10

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Coding: X Coding Gender: Male To Female
Type: M12 X Code Cable Connector Termination: Soldering
Application: Ethernet Cat 6A Characteristic Impedance: 100Ω ±15
Rated Voltage: 50V AC, 60V DC Reference Standard: IEC 61076-2-109
High Light:

M12 8 Pin Industrial Ethernet Cable

,

M12 Cat 6A Shielded Cable

,

X Code Cat 6A Shielded Cable

M12 Industrial Ethernet Cable Male To Female 8 Pin X Code Cat 6A 1m Shielded

Connector Technical Data
Model Number MC08C3LSXSB26RG10
Contact No 8 pin
Coding
X coded
Rated voltage
50V AC, 60V DC
Rated current
0.5A
Contacts plating
Au(15μ" Gold)
Type
M12 X Code Cable Connector
Contact Carrier
PA66+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Brass
Pollution Degree 3
Protection Degree
IP67,IP68


Description

The M12 metric size X-Coding connector, based on IEC 61076-2-109 standard, it is one of the most commonly used connector in the Industrial Ethernet, such as PROFINET, ETHERNET IP, Ethernet CAT. The M12 X Coding connectors provides only 8-Pole contacts configuration with X-Coding keyway design. CABLEFORCE M12 X-Coding connectors are developed and designed to withstand harsh industrial and climatic environments with superior quality that assures very reliable connections.





CABLEFORCE Products Features


● IP67 IP68 IP69K and UL approvals
● TPU over molded and PA+GF or metal shell
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.



FAQ



What is M12 X code?

The M12 X-code enables easy, error-free installation with it Field Installable technology. The four step assembly process is unique in the market. The product provides a 10 Gb/s connection, making applications ready for any IIOT environment.



What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.



What is difference between PROFIBUS and Ethernet?

PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.
