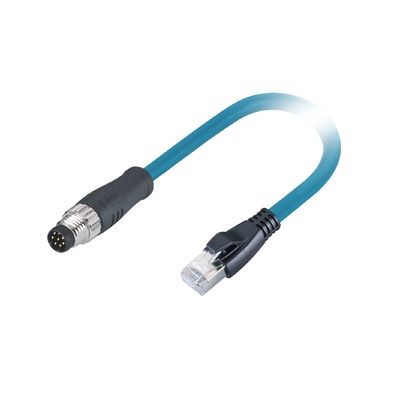

Cat 5E M8 To Rj45 Ethernet Cable

Cat 5E M8 To Rj45 Ethernet Cable
Cat 5E M8 To Rj45 Ethernet Cable

Large Image :  Cat 5E M8 To Rj45 Ethernet Cable

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB-RJ5E08C5LSDSB22CG10-C5E

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Type: M8 Male To RJ45 Male Cable Connector Cable: Cat 5E
Cable Material: PUR Wire Gauge: 0.34²(AWG 22)
Contacts Options: 8Pin Warranty: 1 Year
Protection Degree: IP67, IP68 Pollution Degree: 3
High Light:

Cat 5E M8 To Rj45 Ethernet Cable

,

Shielded M8 To Rj45 Ethernet Cable

M8 Male To RJ45 Male Circular Connector 8Pin Molded With Shielded Cat 5E Ethernet/Profinet Cable

Connector Technical Data
Contacts No. 8Pin
Referance standard IEC 61076-2-104
Wire gauge 0.34²(AWG 22)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass; Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon O-ring
Protection degree IP67, IP68
Pollution degree 3


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. These connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.




CABLEFORCE Products Features


● Optional cable length: 0.3M, 1M, 1.5M, 2M, 3.5M
● Authentication: RoHS, CE
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements




FAQ

● What is Profinet cable?
Profinet cables are industrial Ethernet cables, sometimes referred to as industrial Cat 5 or two-pair Cat 5, for the cabling of industrial fieldbus systems with the globally accepted TCP/IP protocol. These cables are widely used in drive technology such as transport and conveyors, and machine tool manufacturing.



● Is Profinet cable same as Ethernet cable?

There is no difference between a Ethernet cable and a cable with the Label "PROFINET"!



What is the RJ45 connector?
The eight-pin RJ45 connector is a standardised interface which often connects a computer to a local area network (LAN). This type of connector was originally developed for telephone communications but is now used in a range of applications. The abbreviation, RJ45, stands for Registered Jack-45.

Is RJ45 and Ethernet the same?
RJ45 connectors are often used for Ethernet networking. Ethernet cables can also be called as RJ45 cables as they have an RJ45 connector on each end. These connectors have eight coloured wires and 8 different pins.
