Cat 5E M8 Ethernet Cable

Cat 5E M8 Ethernet Cable
Cat 5E M8 Ethernet Cable

Large Image :  Cat 5E M8 Ethernet Cable

Product Details:

Place of Origin: Guangdong, China
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB-MC04C5LSDSB22CG10-C5E

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Type: M12 Male To M8 Male Cable Connector Cable: Cat 5E
Cable Material: PVC Wire Gauge: 0.34²(AWG 22)
Contacts Options: 4Pin Warranty: 1 Year
Protection Degree: IP67, IP68 Pollution Degree: 3
High Light:

4Pin M8 Ethernet Cable


Cat 5E M8 Ethernet Cable

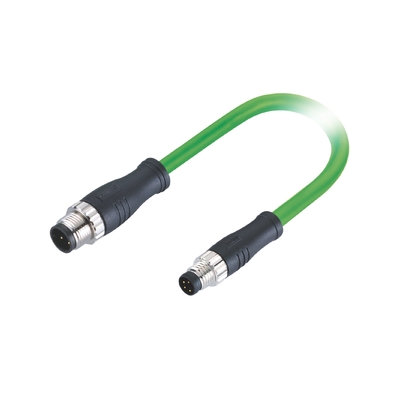

M12 Male To M8 Male Circular Connector Molded With Shielded Cat 5E Ethernet/Profinet Cable
Connector Technical Data
Contacts No. 4Pin
Referance standard IEC 61076-2-104
Locking system M8×1.0 screw
Tightening torque Recommend: 0.2Nm, Max: 0.4Nm
Termination Soldering
Wire gauge 0.34²(AWG 22)
Rated temperature Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Over-molding TPU
Contact carrier TPU+GF
Screw nut Brass, CNC, Nickel-plated
Contact Brass; Phosphor bronze
Contacts plating Au(Gold)
O-ring FKM, Silicon O-ring
Protection degree IP67, IP68
Pollution degree 3
M8 series provides a wide range of metric M8 connectors for small sensors and actuators. These connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.


CABLEFORCE Products Features

● Optional cable length: 0.3M, 1M, 1.5M, 2M, 3.5M
● Authentication: RoHS, CE
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements


● What is Profinet cable?
Profinet cables are industrial Ethernet cables, sometimes referred to as industrial Cat 5 or two-pair Cat 5, for the cabling of industrial fieldbus systems with the globally accepted TCP/IP protocol. These cables are widely used in drive technology such as transport and conveyors, and machine tool manufacturing.


● Is Profinet cable same as Ethernet cable?

There is no difference between a Ethernet cable and a cable with the Label "PROFINET"!


● Can you use Cat 6 cable for Profinet?

A common question about copper cables in Profinet applications is if you can implement Cat 5, Cat 5E, Cat 6, Cat 6A, or Cat 7 cables in Profinet networks? The short answer is “Yes,” you can implement those cables.
