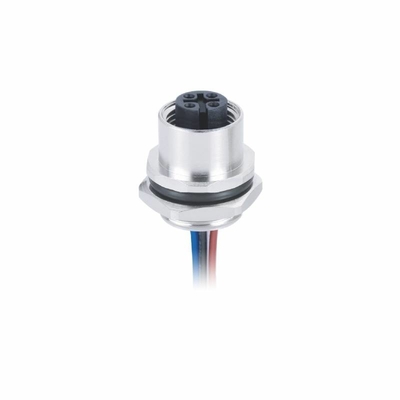

Automation M12 Circular Connector

Automation M12 Circular Connector
Automation M12 Circular Connector

Large Image :  Automation M12 Circular Connector

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: CUL Certified, CE/ EMC,
Model Number: MC04P2LSAB14N-22W05

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Contacts Poles: 04 Pin Cable Length: 0.5M
Connector Gender: Female Connector Cable Jacket: PVC
Keyway Coding: A-Coding Locking System: M12 X 1.0 Screw
Cable Color: Brown, White, Blue, Black O-ring: FKM, Silicon
High Light:

Automation M12 Circular Connector

,

4 Pin M12 Circular Connector

,

Female M12 Panel Mount Connector

Factory Automation M12 Circular Connector A Code 4 Pin Female Panel Rear Mount

Connector Technical Data
Model Number
MC04P2LSAB14N-22W05
Connectors No.
4 Pin
Rated Current
2A
Rated Voltage
250V
Impulse Voltage
2500V
Wire Gauge
0.34mm²(AWG 22)
Insulation resistance 100MΩ
Contact resistence 5MΩ
Contact
Phosphor bronze
Contact Plating
Au(Gold)
Protection degree
IP67, IP68


Description

A-, B-, D- and X-coded are most prevalent. This is because the A-, B- and D-coded connectors have been around for a long time and are some of the original M12 connectors. X-coded connectors are becoming more popular for high-speed industrial Ethernet and will eventually replace the A and D-coded parts for Ethernet applications.



CABLEFORCE Products Features


● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties



FAQ



What are the different types of connector coding?

For example, X-coded connectors are specifically shielded by the design of their coding. The most common types of coding include: A-coded for sensors, dc power and 1 Gbit Ethernet. B-coded for Profibus. C-coded for ac power. D-coded for 100 Mbit Ethernet.





Automation M12 Circular Connector 0
