Home ProductsM12 Circular Connector

Shielded M12 Circular Connector

China Dongguan Cableforce Electronics Co., Ltd certification
China Dongguan Cableforce Electronics Co., Ltd certification
I'm Online Chat Now

Shielded M12 Circular Connector

Shielded M12 Circular Connector
Shielded M12 Circular Connector

Large Image :  Shielded M12 Circular Connector

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MC04C2LSAB22RK10

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Contacts Poles: 04 Pin Contact: Male: Brass, Female: Phosphor Bronze
EMC Shielding: Shielded Cable Length: 1M
Connector Gender: Female Connector Cable Jacket: PUR
Keyway Coding: A-Coding Reference Standard: IEC 61076-2-101
High Light:

Shielded M12 Circular Connector

,

A Code M12 Circular Connector

,

M12 4 Pole Connector

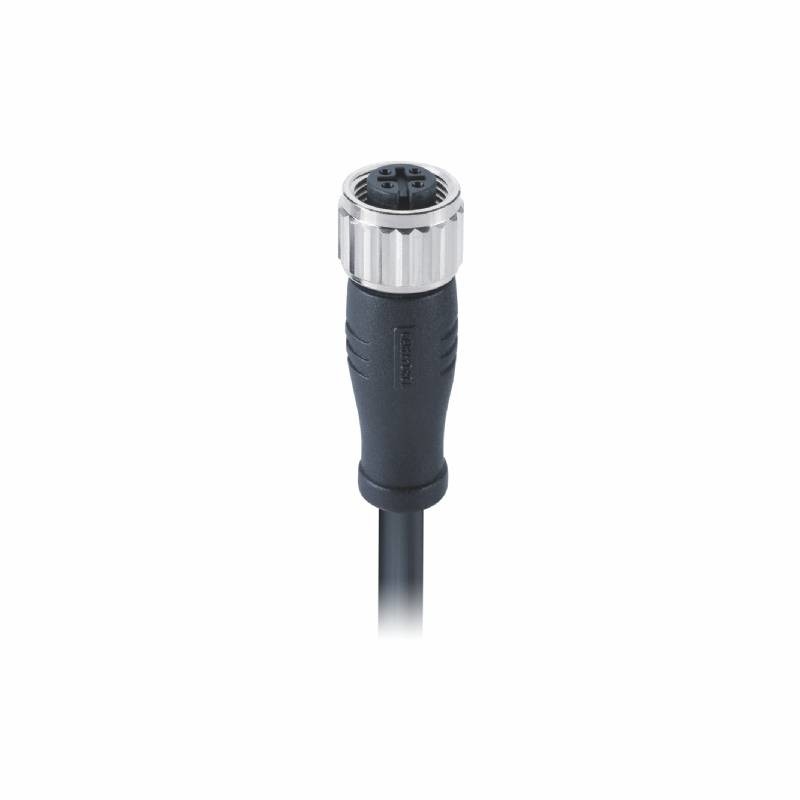

Shielded M12 Circular Connector Female Straight A Code 4 Pole Molded 1M

Connector Technical Data
Model Number
MC04C2LSAB22RK10
Connectors No.
4Pin
Rated Current
4A
Rated Voltage
250V
Impulse Voltage
2500V
Wire Gauge
0.34mm²(AWG 22)
Tightening Torque
Recommend: 0.4Nm, Max: 0.8Nm
O-ring
FKM/Silicon O-Ring
Screw Nut
Brass,CNC,Nickel-plated
Termination
Soldering
Contact Plating
Au(Gold)
Rated Temperature
Flexible: -25℃~+80℃, Static: -40℃~+80℃


Description

The M12 metric size A-Coding connectors, based on IEC 61076-2-101 standard, it is the most commonly used connector in the factory automation.The number gives their outer screw thread diameter in millimeters as with the identically named screws. M12 A-Coding connectors mainly designed for sensor and actuator devices. CABLEFORCE M12 A-Coding connectors are developed and designed for harsh industrial and climatic environments, e.g. High temperature range endurance, Hydrolysis resistant, Oil resistant, Corrosion resistant, UV-Resistant, Abrasion resistant, Bending and Drag Chain applicable. M12 A-Coding is a specified single keyway design; including B, C, D, X, S, T, K, L, Y-Coding.





CABLEFORCE Products Features

● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.



FAQ



What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.



What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.





Shielded M12 Circular Connector 0Shielded M12 Circular Connector 1
