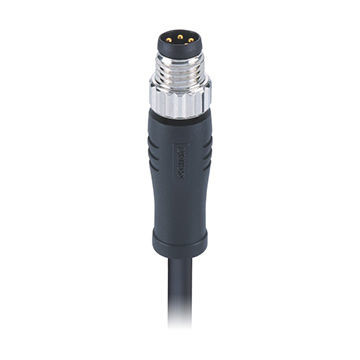

Male M8 Circular Connector

Male M8 Circular Connector
Male M8 Circular Connector

Large Image :  Male M8 Circular Connector

Product Details:

Place of Origin: Guangdong, China
Brand Name: CABLEFORCE
Certification: UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Model Number: MB04C1LSAB24CK10

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiated
Packaging Details: Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Delivery Time: 2~3 weeks
Payment Terms: T/T
Supply Ability: 60000 pcs/month
Detailed Product Description
Contacts No.: 4Pin Reference Standard: IEC 61076-2-104
Rated Current: 3A Rated Voltage: 60V
Impulse Voltage: 1500V Rated Temperature: -40℃ ~ +80℃
Screw Nut: Brass, CNC, Nickel-plated Protection Degree: IP67, IP68
High Light:

A Code M8 Circular Connector

,

Male M8 Circular Connector

M8 A Code Male Circular Connector 4Pin Molded With Un - shielded Cable​

Connector Technical Data
Model number
MB04C1LSAB24CK10
Connectors No.
4Pin
Rated current
3A
Rated voltage
60V
Impulse voltage
1500V
Wire gauge
0.25mm²(AWG 24)
Over-molding
TPU
Contact carrier
TPU+GF
Screw nut
Brass, CNC, Nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Contact plating
Au(Gold)
Protection degree
IP67, IP68


Description

M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice.





CABLEFORCE Products Features


● 3Pin, 4Pin, 5Pin, 6Pin, 8Pin aie available
● Rated temperature: Flexible: -25 ~ +80℃, Static: -40 ~ +80℃
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements





FAQ



What is M8 connector?

The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.



What does the coding means on M8 connector?

This coding prevents incorrect mating on products.
