Dongguan Cableforce Electronics Co., Ltd
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Contacts Poles: | 03 Pin | Cable Length: | 2M |
|---|---|---|---|
| Contact: | Brass | Keyway Coding: | A Coding |
| Tightening Torque: | 0.6Nm | Cable Color: | Bronw, Blue, Black |
| Wire Gauge: | 0.75 M㎡ | Contacts Plating: | Gold |

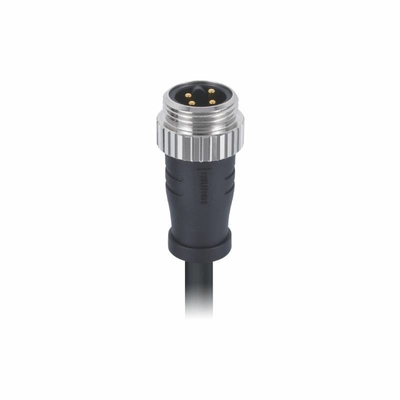

| High Light: | A Code Mini Change Connectors,3 Pin Mini Change Connectors |
||
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MF03C1LCAB16CK20 | ||||||||
|
Connectors No.
|
3 Pin
|
||||||||
|
Rated Current
|
13A, 8A
|
||||||||
|
Rated Voltage
|
300V
|
||||||||
|
Impulse Voltage
|
2500V
|
||||||||
| Wire gauge | AWG 16, AWG 18 | ||||||||
| Insulation resistance | 100MΩ | ||||||||
| Contact resistence | 5MΩ | ||||||||
| Termination | Crimping | ||||||||
| Contact plating | Au | ||||||||
| Screw nut | Brass, CNC, Nickled plated | ||||||||
MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.
Nickel plated brass
High durability, corrosion resistance, oxidation resistance
Strong waterproof performance
FAQ
●What is a mini-change connector?
First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.
